  • Gniazdo tablicowe skośne 63A 5P 400V 6h IP66/67

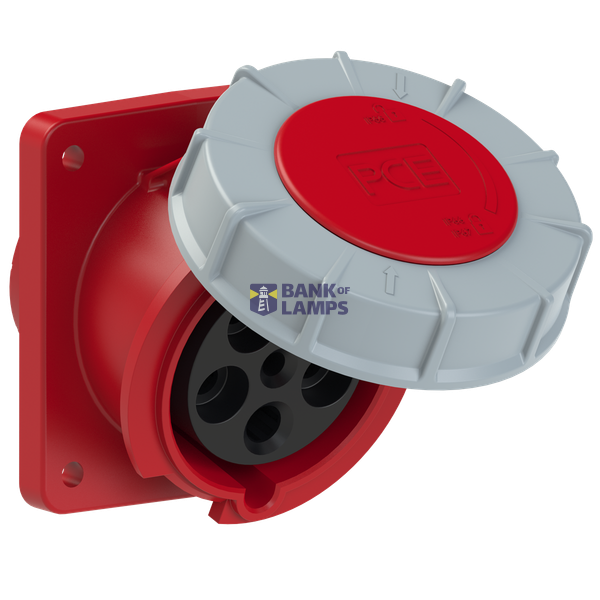

Angled panel socket 63A 5P 400V 6h IP66/67 image 1
PCE

Gniazdo tablicowe skośne 63A 5P 400V 6h IP66/67

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Angled panel socket 63A 5P 400V 6h IP66/67
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001317
Number of poles 5
Material Plastic
IEC-amperage 63 A
Connection system Screwed terminal

Packing details

Packing level 1 5907711100690, 5907711100690

Other Technical data

RAL-number 3000
Surface treatment contacts Untreated
Angle of plug Angled
Contact material CuZn
Degree of protection (IP) IP67
Military model No
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Drill hole distance vertical 88 mm
Drill hole distance horizontal 80 mm
Flange size vertical 112 mm
Flange size horizontal 100 mm

Description

Gniazdo tablicowe skośne POWER TWIST 63A 3P+Z+N 400V 50/60Hz 6h (kołnierz 100X112 - rozstaw otworów 80X88) IP66/67
