  • Gniazdo tablicowe skośne 32A 3P 230V 6h IP44

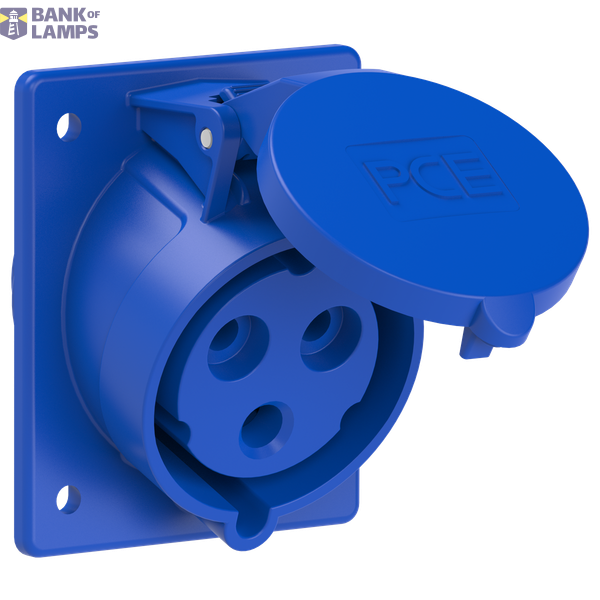

Angled panel socket 32A 3P 230V 6h IP44 image 1
PCE

Gniazdo tablicowe skośne 32A 3P 230V 6h IP44

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Angled panel socket 32A 3P 230V 6h IP44
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001317
Number of poles 3
Material Plastic
IEC-amperage 32 A
Connection system Screwed terminal

Packing details

Packing level 1 5907711119012, 5907711119012

Other Technical data

RAL-number 5017
Surface treatment contacts Untreated
Angle of plug Angled
Contact material CuZn
Degree of protection (IP) IP44
Military model No
Clock hour position 6 h
Identification colour Blue
Voltage according to EN 60309-2 230 V (50+60 Hz) blue
Drill hole distance vertical 73 mm
Drill hole distance horizontal 60 mm
Flange size vertical 97 mm
Flange size horizontal 80 mm

Description

Gniazdo tablicowe skośne 32A 2P+Z 230V 50/60Hz 6h (kołnierz 80X97 - rozstaw otworów 60X73) IP44
