  • Gniazdo tablicowe skośne 16A 4P 400V 6h IP67

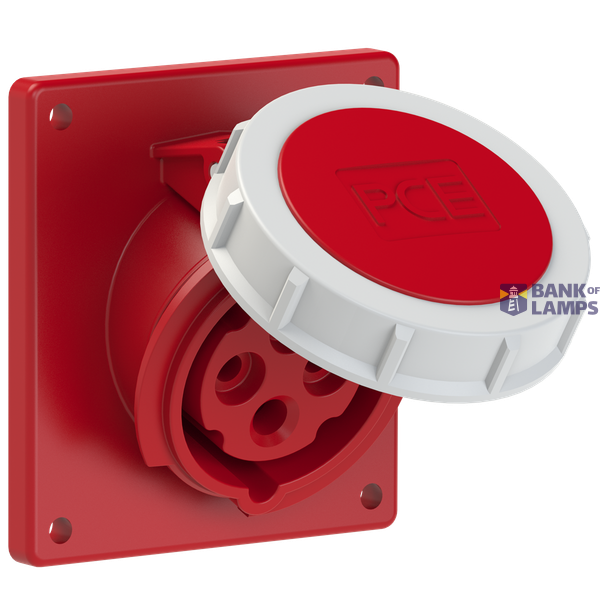

Angled panel socket 16A 4P 400V 6h IP67 image 1
PCE

Gniazdo tablicowe skośne 16A 4P 400V 6h IP67

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Angled panel socket 16A 4P 400V 6h IP67
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001317
Number of poles 4
Material Plastic
IEC-amperage 16 A
Connection system Screwed terminal

Packing details

Packing level 1 5907711110705, 5907711110705

Other Technical data

RAL-number 3000
Surface treatment contacts Untreated
Angle of plug Angled
Contact material CuZn
Degree of protection (IP) IP67
Military model No
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Drill hole distance vertical 85 mm
Drill hole distance horizontal 77 mm
Flange size vertical 100 mm
Flange size horizontal 92 mm

Description

Gniazdo tablicowe skośne 16A 3P+Z 400V 50/60Hz 6h (kołnierz 92X100 - rozstaw otworów 77X85) IP67
