  • Gniazdo tablicowe skośne 16A 3P 230V 6h IP44/54

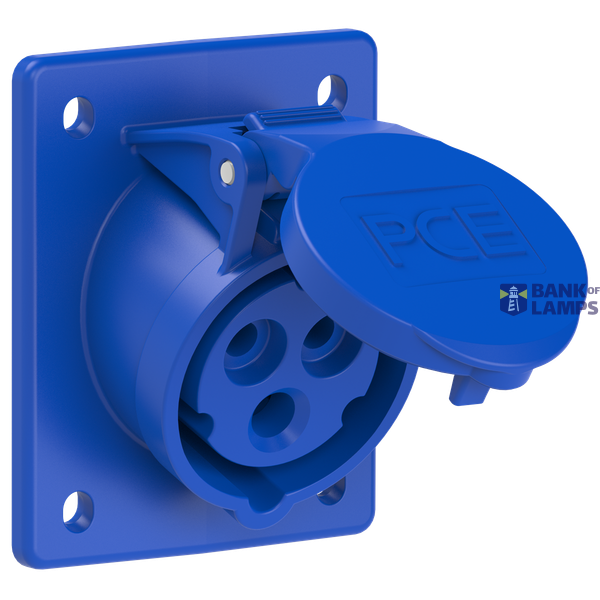

Angled panel socket 16A 3P 230V 6h IP44/54 image 1
PCE

Gniazdo tablicowe skośne 16A 3P 230V 6h IP44/54

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Angled panel socket 16A 3P 230V 6h IP44/54
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001317
Number of poles 3
Material Plastic
IEC-amperage 16 A
Connection system Screwed terminal

Packing details

Packing level 1 5907711138372, 5907711138372

Other Technical data

RAL-number 5017
Surface treatment contacts Untreated
Angle of plug Angled
Contact material CuZn
Degree of protection (IP) IP44
Military model No
Clock hour position 6 h
Identification colour Blue
Voltage according to EN 60309-2 230 V (50+60 Hz) blue
Drill hole distance vertical 65 mm
Drill hole distance horizontal 50 mm
Flange size vertical 85 mm
Flange size horizontal 70 mm

Description

Gniazdo tablicowe skośne 16A 2P+Z 230V 50/60Hz 6h (kołnierz 70X85 - rozstaw otworów 50X65) IP44/54
