  • Gniazdo tablicowe proste 16A 3P 6h IP44/54

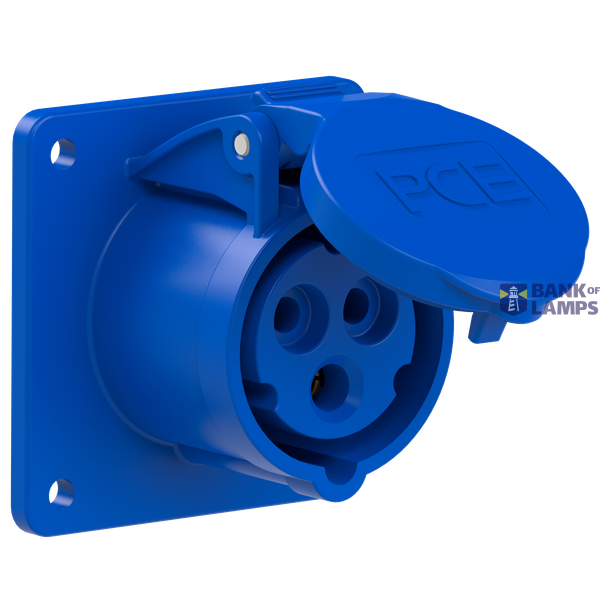

Straight panel socket 16A 3P 6h IP44/54 image 1
PCE

Gniazdo tablicowe proste 16A 3P 6h IP44/54

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Straight panel socket 16A 3P 6h IP44/54
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001317
Number of poles 3
Material Plastic
IEC-amperage 16 A
Connection system Screwed terminal

Packing details

Packing level 1 5907711139126, 5907711139126

Other Technical data

RAL-number 5017
Surface treatment contacts Untreated
Angle of plug Straight
Contact material CuZn
Degree of protection (IP) IP54
Military model No
Clock hour position 6 h
Identification colour Blue
Voltage according to EN 60309-2 230 V (50+60 Hz) blue
Drill hole distance vertical 60 mm
Drill hole distance horizontal 60 mm
Flange size vertical 75 mm
Flange size horizontal 75 mm

Description

Gniazdo tablicowe proste 16A 2P+Z 230V 50/60 Hz 6h (kołnierz: 75X75 - rozstaw otworów: 60X60) IP44/54
