  • Gniazdo stałe 24V

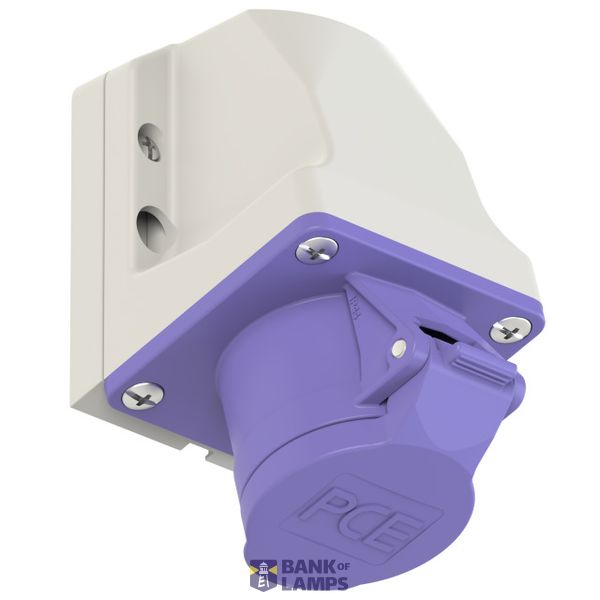

24V permanent socket image 1
PCE

Gniazdo stałe 24V

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name 24V permanent socket
Brand PCE
Harmonized System Code 8536 6990 00
ETIM EC001321
IEC-amperage 16 A
Connection system Screwed terminal
Contact material CuZn
Degree of protection (IP) IP44
Voltage according to EN 60309-2 20-25 V (50+60 Hz) violet

Packing details

Packing level 1 5907711110828
Packing level 2 5907711110828

Other Technical data

Model Surface mounted (plaster)
RAL-number 4005
Cable entry Gland nut
Number of poles 3
Insulated mounting Yes
Material Plastic
Type of fastening Inner lying mounting
Surface treatment contacts Nickel-plated
Amperage according to UL/CSA (for UL-version) 0 A
Military model No
Clock hour position 0 h
Identification colour Purple

Description

16A 24V/~50-60Hz 3P IP44
