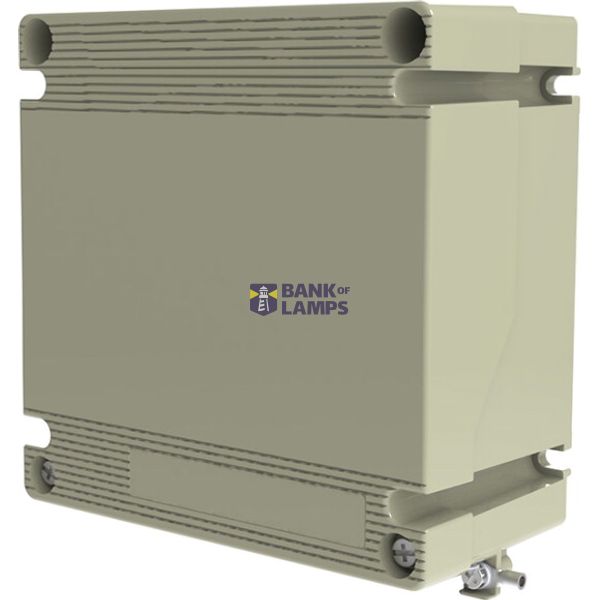

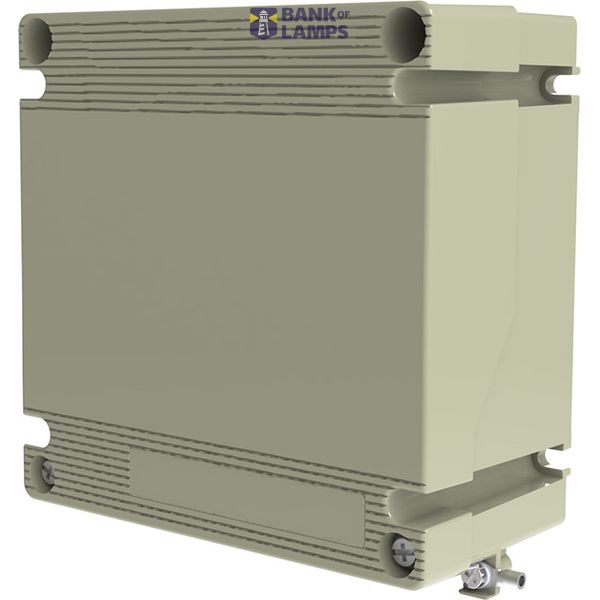

GHG71 EX-E TB SIZE 5 ASSEMBLED GREY
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | GHG71 EX-E TB SIZE 5 ASSEMBLED GREY |
| Brand | EATON |
| ETIM | EC002713 |
| Mounting method | Surface mounted (plaster) |
| Colour | Grey |
| Halogen free | Yes |
| Material | Aluminium |
| Degree of protection (IP) | IP66 |
Packing details
| Packing level 1 | 4250959965257 |
Other Technical data
| Width | 223 mm |
| Depth | 85 mm |
| Surface protection | Other |
| Extension possible | No |
| With transparent cover | No |
| With cover | Yes |
| Number of connection clamps | 38 |
| Rated insulation voltage Ui | 690 V |
| Length | 128 mm |
| Sealable | No |
| Type of inlet | Other |
| Circuit integrity | None |
| Operating temperature | -55-55 °C |
| Number of inlets | 13 |
| Explosion-tested version | Yes |
| Impact strength | IK10 |
| Cover attachment | Screwed |
| Max. conductor cross section | 16 mm² |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Material plate thickness cabinet | 3.5 mm |
| Degree of protection (NEMA) | Other |
Description
Ex-e terminal enclosure GHG 712 5 for Zone 1/21, enclosure mat.: Aluminium die-cast12 x M16 cable gland ADE 1F2, 1 x M25 cable gland ADE 1F2, terminals:24 x 2.5 mm², PE-rail 14 x 4 mm² (6 mm²), screw terminals
