EATON

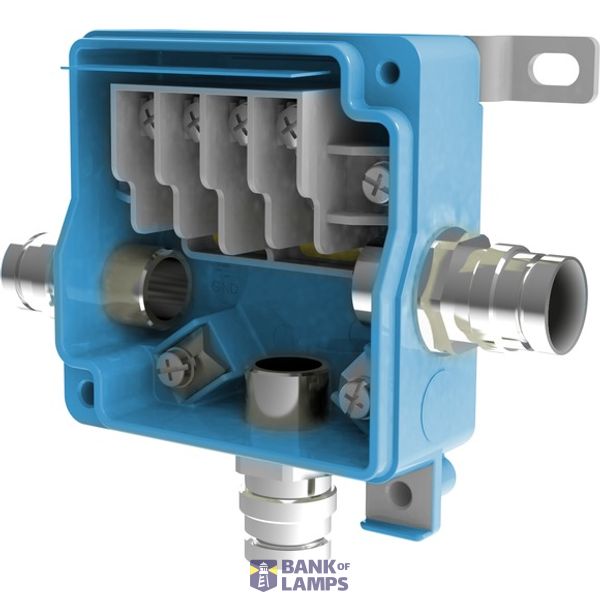

GHG71 Ex-e JB Size 1 SK 3xM16 Blue

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name GHG71 Ex-e JB Size 1 SK 3xM16 Blue
Brand EATON
ETIM EC002713
Mounting method Surface mounted (plaster)
Colour Grey
Halogen free Yes
Material Aluminium
Degree of protection (IP) IP66

Packing details

Packing level 1 4250959941534

Other Technical data

Depth 115 mm
Extension possible No
Length 283 mm
Circuit integrity None
Explosion-tested version Yes
Impact strength IK10
Cover attachment Screwed
Max. conductor cross section 70 mm²
For Ex-zone gas 1, 2
For Ex-Zone dust 21, 22
Material plate thickness cabinet 3.5 mm
Degree of protection (NEMA) Other

Description

Ex-i junction box GHG 711 1 for Zone 1/21, enclosure mat.: Aluminium die-cast3 x M16 cable gland ADE 1F2, terminals:4 x 2.5 mm², screw terminals
