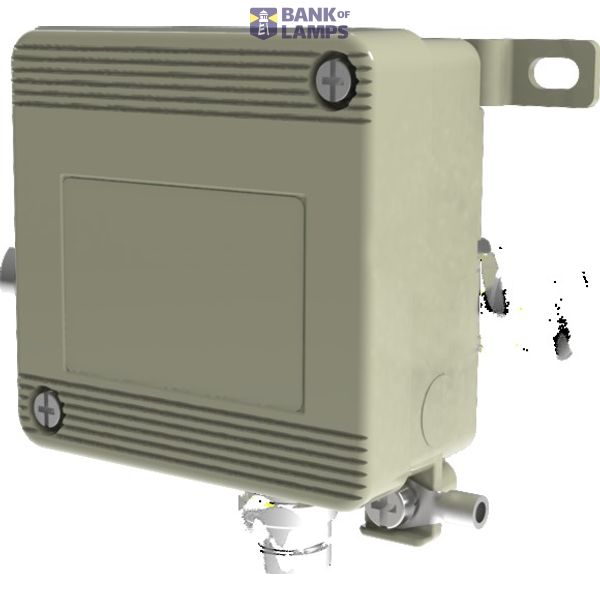

GHG71 EX-E EMPTY ENCLOSURE SIZE 1A GREY
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | GHG71 EX-E EMPTY ENCLOSURE SIZE 1A GREY |
| Brand | EATON |
| ETIM | EC002713 |
| Mounting method | Surface mounted (plaster) |
| Colour | Grey |
| Halogen free | Yes |
| Material | Aluminium |
| Degree of protection (IP) | IP66 |
Packing details
| Packing level 1 | 4250959941558 |
Other Technical data
| Width | 77 mm |
| Depth | 46.5 mm |
| Surface protection | Other |
| Extension possible | No |
| With transparent cover | No |
| With cover | Yes |
| Number of connection clamps | 0 |
| Rated insulation voltage Ui | 690 V |
| Length | 77 mm |
| Sealable | No |
| Type of inlet | Other |
| Circuit integrity | None |
| Operating temperature | -55-55 °C |
| Number of inlets | 0 |
| Explosion-tested version | Yes |
| Impact strength | IK10 |
| Cover attachment | Screwed |
| Max. conductor cross section | 0 mm² |
| For Ex-zone gas | 1, 2 |
| For Ex-Zone dust | 21, 22 |
| Material plate thickness cabinet | 3.5 mm |
| Degree of protection (NEMA) | Other |
Description
Ex-e empty enclosure GHG 713 1 for Zone 1/21, enclosure mat.: Aluminium die-castw/o drilling, screw terminals
