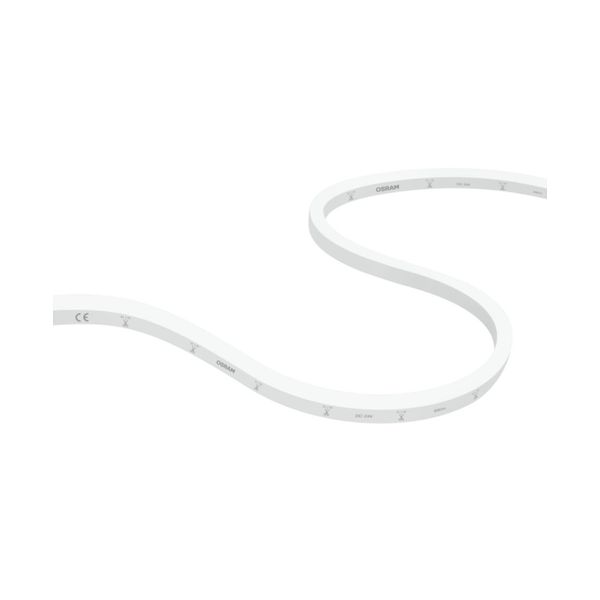

GFDS600-G1-850-05 image 1
OSRAM

GFDS600-G1-850-05

In stock: No Vendor stock: No Minimal order quantity: 1 Discontinued
Price (excl. VAT):
305,79 €
This price is valid until 31.08.25
Split box: 10,00 €
EAN: 4062172195041
MPN: 4062172195041
Package: 1
Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition New
Manufacture name GFDS600-G1-850-05
Brand OSRAM
Categories Light ribbon-/hose/-strip

Packing details

Packing level 1 4062172195041

Description

GFDS600-G1-850-05 used to illuminate or enhance visual accents in lighting systems. Works for modular installs that need consistent light spread, flexible and adaptable design makes it fit tight spaces without complex mounting gear. Operates on low-voltage DC power feed; typical draw around 24V range. Max run length limited by load balancing issues—voltage drop past ~10 meters noticeable unless parallel circuits used. IP-rated but not fully submersible – no hard sealing at termination points, consider additional environmental shielding if exposed to spray zones or direct contact with moisture heavy areas. Physical width narrow: ~14mm strip body excluding adhesive backing layer. Adhesive moderately strong but loses grip on textured metals over time—testing shows degradation starts around six months depending usage conditions. Strip housing thermoplastic polymer rated Class V0 flame resistance (edge tears prone under tension). Tech notes: LEDs spaced roughly 20mm apart. CRI >90, listed as daylight white @850 output. Cut point increments every 5cm. Max current rating approx 2A per meter. Heat dissipation efficiency borderline under max continuous drive settings. Connection terminals marked +/- polarity sides inconsistent stock batches noticed. Weight negligible, undercut comparable models slightly heavier ribbon mass ratio
