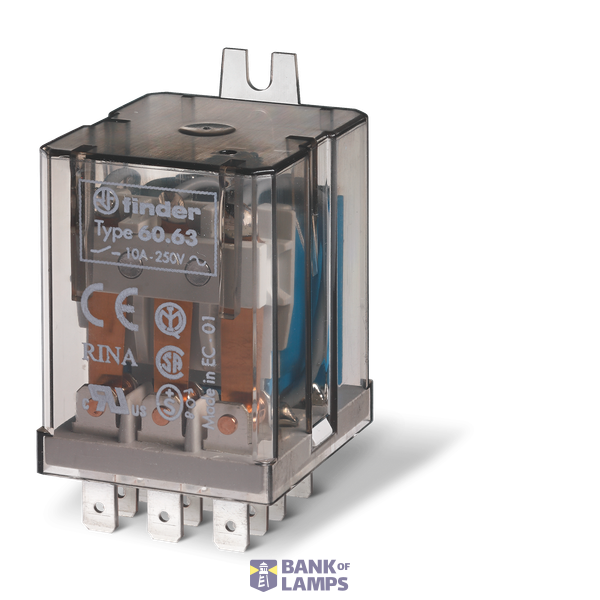

GENERAL PURPOSE RELAY

Name: GENERAL PURPOSE RELAY
Brand: FINDER
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	GENERAL PURPOSE RELAY
Brand	FINDER
ETIM	EC001437
Nominal current	10 A
Type of switch contact	Single contact
Type of electric connection	Soldering flag connection
Rated control supply voltage at AC 50 Hz	230 V
Voltage type for actuating	AC
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0

Packing details

Packing level 1

8012823077277

Other Technical data

Width	32.2 mm
Height	56 mm
Depth	36.5 mm
Drive, polarization	Polarity free
Drive, switching attitude	Mono stable
With forced-guided contacts	No
Complete with socket	No
Rated control supply voltage at AC 60 Hz	230 V
Number of contacts as change-over contact	3

Description

General purpose relays (A): 10 Nr.contacts: 3 Contacts configuration: CO Contact Material: AgCdO Type of electric connection: Soldering flag connection Coil version: AC Volt AC: 230 V. Polarity free Mono stable Environmental Protection: RT I.
