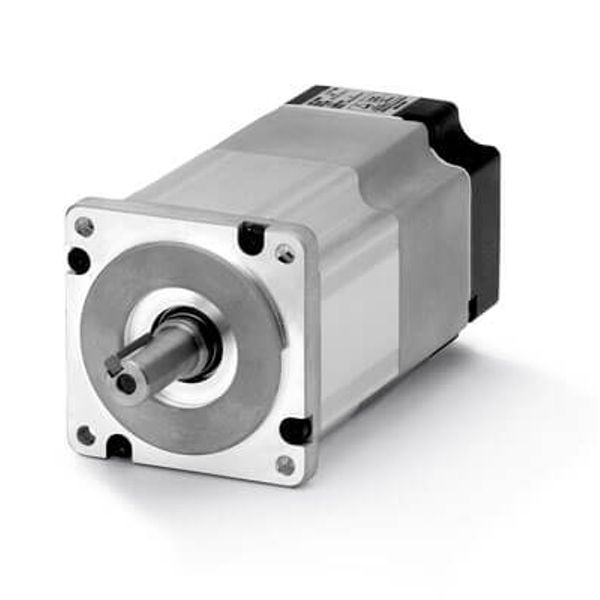

G-Series AC servo motor, 200 W, 200 VAC, 3000 rpm, 0.64 Nm, absolute R8MG0390B

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
936,91 €
This price is valid until 24.12.25
EAN: 4547648493918
MPN: R88M-G20030T-S2
Package: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name G-Series AC servo motor, 200 W, 200 VAC, 3000 rpm, 0.64 Nm, absolute R8MG0390B
Brand Omron
Categories Standard Electric Motors
Country of origin NL
Harmonized System Code 8501 5100 00
Model Other
Voltage type AC
Rated current 1.6 A
Rated voltage 200 V
Housing material Other
Rated frequency 50-60 Hz
Rated performance at rated frequency 0.2 kW
Degree of protection (IP) IP65
Motor efficiency class Other

Packing details

Packing level 1 4547648493918, 4547648493918

Other Technical data

Number of phases 3
Construction type IM 3001 (B5)
Operating temperature 0-40 °C
Rated rotational speed at rated frequency 3000 1/min
Duty cycle S1
Frame size according to IEC 60 mm
With positive temperature coefficient resistor (PTC) No
With resistance temperature detector (RTD) No
Intrinsic safety (IS) None
Overload capability No
Cooling method Air
Shaft end type Parallel key
Vacuum pressure impregnation (VPI) None
Degree of protection (NEMA) Other
Suitable for frequency control No
Bearing Other
Insulation class according to IEC F
With anti-condensation No
Nominal torque 0.64 Nm

Downloads

Product data sheet

Description

G-Series AC servo motor, 200 W, 200 VAC, 3000 rpm, 0.64 Nm, absolute
