FW 36L35-740 NR CL2 T60F ANT - LED amenity luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 9010299741585
MPN: 96635484
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | FW 36L35-740 NR CL2 T60F ANT - LED amenity luminaire |
| Brand | Thorn |
| Categories |
Street and park luminaires
|
| Country of origin | GB |
| Harmonized System Code | 9405 1190 00 |
| Width | 436 mm |
| Colour rendering index CRI | 70-79 |
| Length | 435 mm |
| Height/depth | 200 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 4000 K |
| Max. system power | 39 W |
| Rated luminous flux according to IEC 62722-2-1 | 6036 lm |
Packing details
| Packing level 1 | 9010299741585, 9010299741585 |
Other Technical data
| Protection class | II |
| Lamp holder | None |
| With base plate | No |
| Colour housing | Anthracite |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Asymmetric |
| Material cover | Glass transparent |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 16 |
| Max. number of luminaires per miniature circuit breaker B16 | 10 |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Exchangeable control gear | Yes |
Downloads
Description

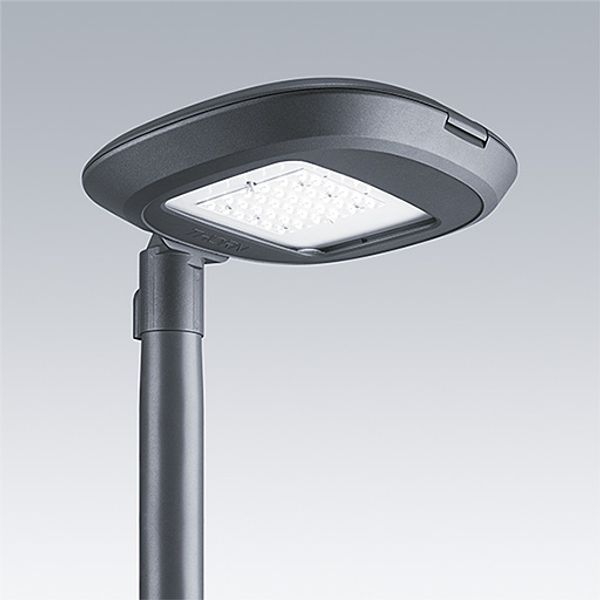

A highly versatile LED lantern with a Narrow Road, asymmetric distribution. Electronic, fixed output control gear driving 36 LEDs at 350mA. Compatible with PL, LRT, 7 pin Nema socket. Class II electrical, IP66, IK10. Housing, canopy and spigot: die-cast aluminium (EN AC-47100) powder coated anthracite (close to RAL7043).. Enclosure: 6mm thick clear glass.. Complete with 4000K LED. Post top mounting to Ø60mm column, tilt 5°, adjustable from 0° to +10°.
Surge protection: 10kV single pulse common mode and 8kV multipulse common mode and 6kV multipulse differential mode. If permanent DALI system is connected, 6kV multipulse common and differential mode.
Dimensions: 435 x 436 x 200 mm
Luminaire input power: 39 W
Luminaire luminous flux: 6036 lm
Luminaire efficacy: 155 lm/W
Weight: 8.5 kg
Scx: 0.054 m²
