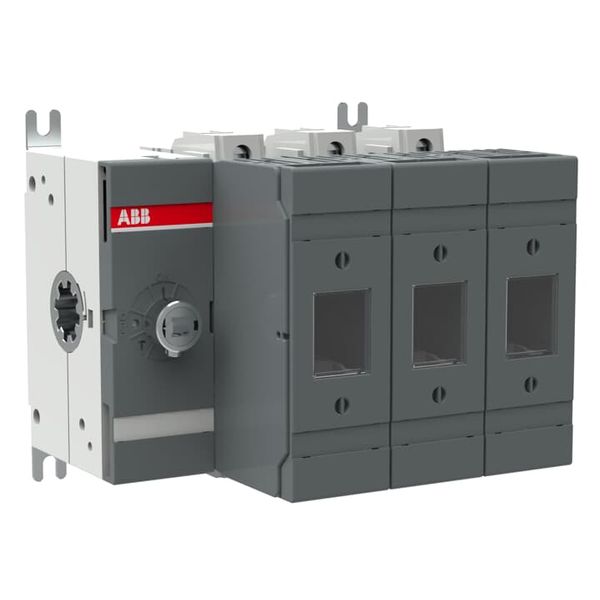

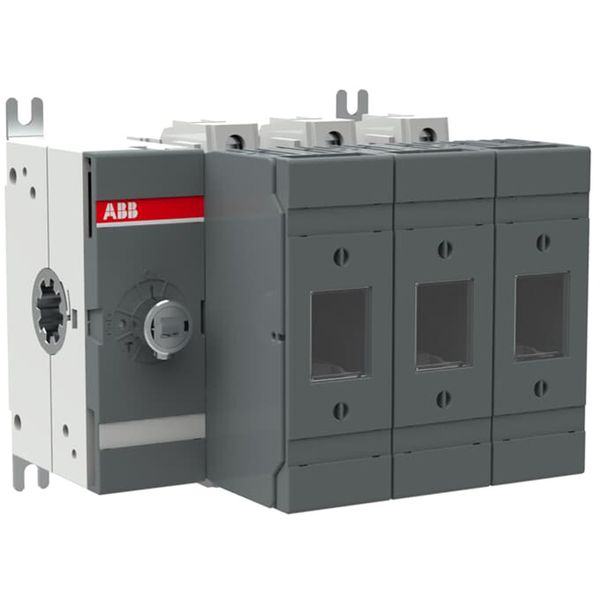

OS60GJ03 FUSIBLE DISCONNECT SWITCH
Order only
Price (excl. VAT):
150,96 €
EAN: 6417019481340
MPN: 1SCA115866R1001
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | OS60GJ03 FUSIBLE DISCONNECT SWITCH |
| Brand | ABB |
| Categories |
Fuse Switch Disconnectors
|
| Country of origin | FI |
| Harmonized System Code | 8536 5080 00 |
| Rated permanent current Iu | 63 A |
| Number of poles | 3 |
| Suitable for fuses | Other |
| Version as main switch | Yes |
| Version as safety switch | Yes |
| Rated operation power at AC-23, 400 V | 55 kW |
| Max. rated operation voltage Ue AC | 1000 V |
Packing details
| Packing level 1 | 6417019481340 |
Other Technical data
| Cable entry | Other |
| Conditioned rated short-circuit current Iq | 80 kA |
| Motor drive integrated | No |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | No |
| Type of control element | Short thumb-grip |
| Rated short-time withstand current lcw | 2.5 kA |
| Suitable for floor mounting | No |
| Suitable for front mounting | No |
| Suitable for busbar mounting | Yes |
| Motor drive optional | No |
| Position control element | Left |
| Equipped with connectors | Yes |
Description
Switch Fuses,Front Operated,3-pole,03 (Left Side),Class J,60 A,Handle and shaft not included,
