Phoenix Contact

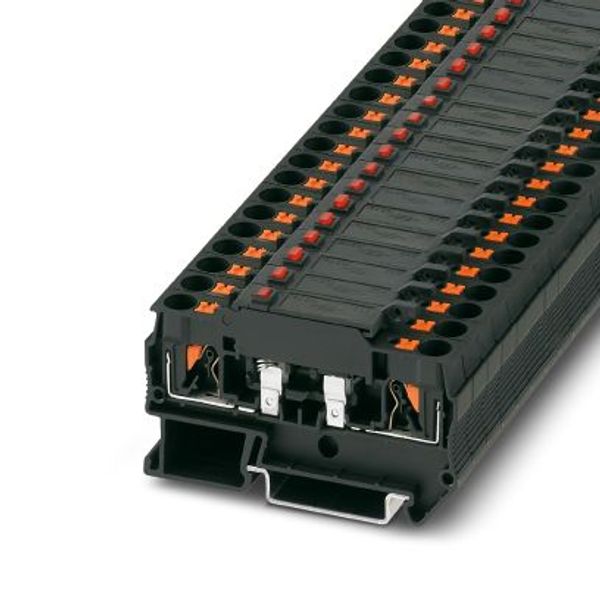

Fuse modular terminal block Phoenix Contact PTC 4-HESILED 60 (5X20)

Order only Minimal order quantity: 50
Price (excl. VAT):
5,93 € per pcs
This price is valid until 24.12.25
Subtotal: 296,50 € MOQ: 50
EAN: 4055626045481
MPN: 3270205
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name PTC 4-HESILED 60 (5X20) - Fuse modular terminal block
Brand Phoenix Contact
Categories DIN Rail Terminal Blocks
Country of origin CN
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 0 V
Type of electrical connection 1 Other
Type of fuse insert Other
Type of fuse holder Swivelling
Number of levels 1
Connectable conductor cross section solid-core 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.2-4 mm²
Rated current In 0 A

Packing details

Packing level 1 4055626045481, 4055626045481

Other Technical data

Colour Black
Width 8.15 mm
Height 67.8 mm
Depth 41.52 mm
Operating temperature 105 °C
Inflammability class of insulation material according to with UL94 V0
Closing plate required Yes
Material insulation body Other

Description

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 60 V, nominal current: 6.3 A, connection method: Push-in connection, 1 level, Rated cross section: 1 mm², cross section:  0.2 mm²- 6 mm², mounting type: NS 35/7,5, NS 35/15, color: black
