EATON

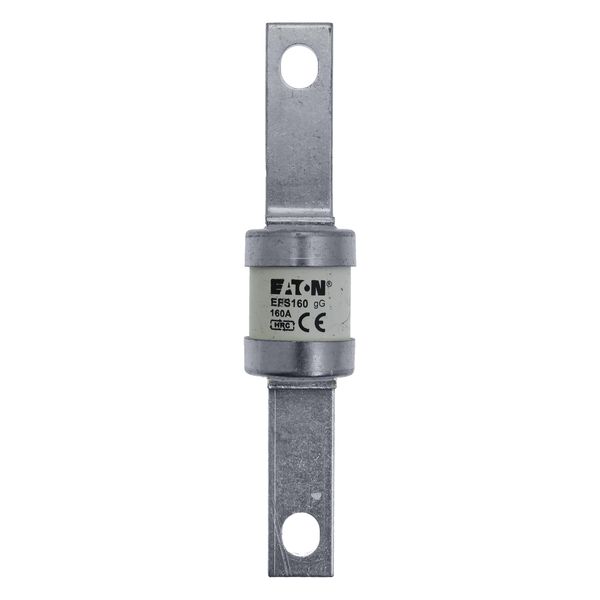

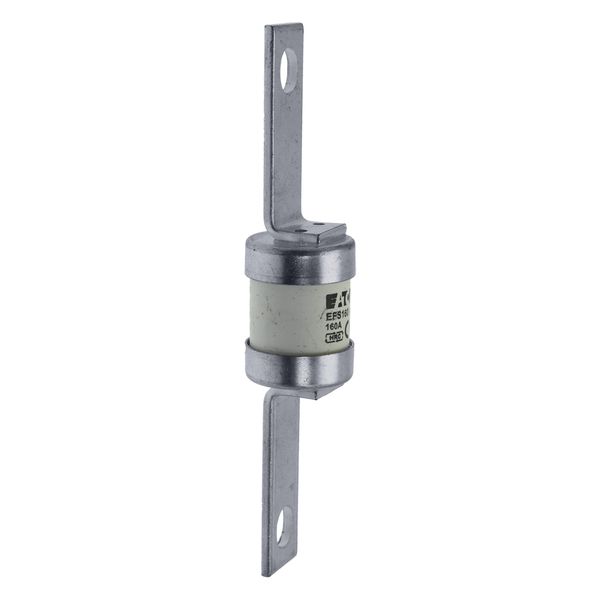

Fuse-link, low voltage, 160 A, AC 415 V, BS88/B2, 38 x 209 mm, gL/gG, BS

Order only
Price (excl. VAT):
17,79 €
This price is valid until 31.12.25
EAN: 5027590019057
MPN: EFS160
Package: 1
Box: 80
Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition New
Manufacture name Fuse-link, low voltage, 160 A, AC 415 V, BS88/B2, 38 x 209 mm, gL/gG, BS
Brand EATON
Categories HRC Fuses
Country of origin IN
Harmonized System Code 8536 1090 00
Type of current AC
Rated current 160 A
Utilization category gL/gG (cable protection/equipment protection)
Breaking capacity 80 kA
Rated voltage AC 415 V
Fuse construction type according to IEC 60269 B2

Packing details

Packing level 1 5027590019057
Packing level 2 5027590357609

Other Technical data

Colour code None
Type of fuse status indicator None
Power loss at rated current 13 W
Centre-to-centre distance of connections 133 mm
Mounting holes M10

Description

Fuse, Fuse-link, low voltage, 160 A, AC 415 V, BS88/B2, 38 x 209 mm, gL/gG, BS, centre-bolted tags, general industrial applications, BS88-2, IEC 60269-2, Breaking Capacity 80 kA, Ceramic body
