EATON

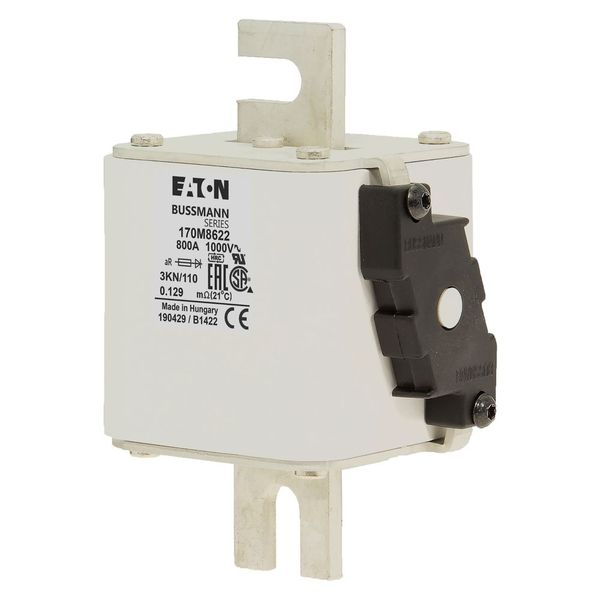

Fuse-link, high speed, 800 A, AC 1000 V, DIN 3, 74 x 92 x 138 mm, aR, DIN, IEC, single indicator

Order only
Price (excl. VAT):
199,04 €
This price is valid until 24.12.25
EAN: 5996516022528
MPN: 170M8622
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Fuse-link, high speed, 800 A, AC 1000 V, DIN 3, 74 x 92 x 138 mm, aR, DIN, IEC, single indicator
Brand EATON
Categories HRC Fuses
Country of origin HU
Harmonized System Code 8536 1090 00
Type of current AC
Rated current 800 A
Utilization category aR (accompanied semiconductor protection)
Breaking capacity 125 kA
Rated voltage AC 1000 V
Fuse construction type according to IEC 60269 3

Packing details

Packing level 1 5996516022528
Packing level 2 5027590351928

Other Technical data

Colour code None
Type of fuse status indicator Other
Power loss at rated current 135 W
Centre-to-centre distance of connections 108 mm
Mounting holes M10

Description

Fuse, Fuse-link, high speed, 800 A, AC 1000 V, DIN 3, 74 x 92 x 138 mm, aR, DIN, IEC, single indicator, square body with centre-bolted tags (slotted), indicator style K for microswitch, semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 125 kA
