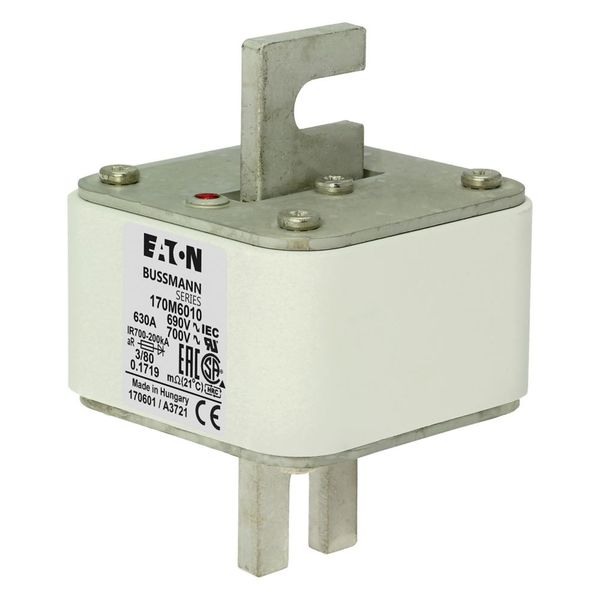

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 1

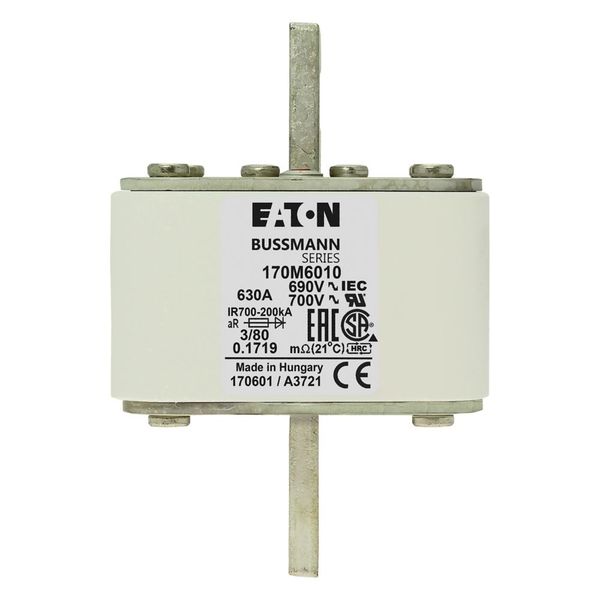

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 2

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 3

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 4

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 5

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 6

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 7

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 8

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 9

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 10

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 11

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 12

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 13

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 14

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 15

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 16

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 17

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 18

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator image 19

Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator

Name: Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator
Brand: EATON
Price: 139.070 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

139,07 €

This price is valid until 24.12.26

EAN: 5996516017258

MPN: 170M6010

Package: 1

Box: 10

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator
Brand	EATON
Categories	HRC Fuses
Country of origin*	HU
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 1090 00
Type of current	AC
Rated current	630 A
Utilization category	aR (accompanied semiconductor protection)
Breaking capacity	200 kA
Rated voltage AC	690 V
Fuse construction type according to IEC 60269	3

Packing details

Packing level 1	5996516017258
Packing level 2	5027590350358

Other Technical data

Colour code	None
Type of fuse status indicator	Top fuse status indicator
Power loss at rated current	105 W
Centre-to-centre distance of connections	78 mm
Mounting holes	Other

Description

Fuse, Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator, square body with centre-bolted tags (slotted), semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 200 kA
