EATON

Fuse-link, high speed, 32 A, AC 660 V, size 0000, 18 x 19 x 100 mm, gR, UL, visual indicator

Order only Minimal order quantity: 10
Price (excl. VAT):
27,03 €
This price is valid until 24.12.25
Subtotal: 270,30 € MOQ: 10
EAN: 5027590440523
MPN: 170M0162
Package: 1

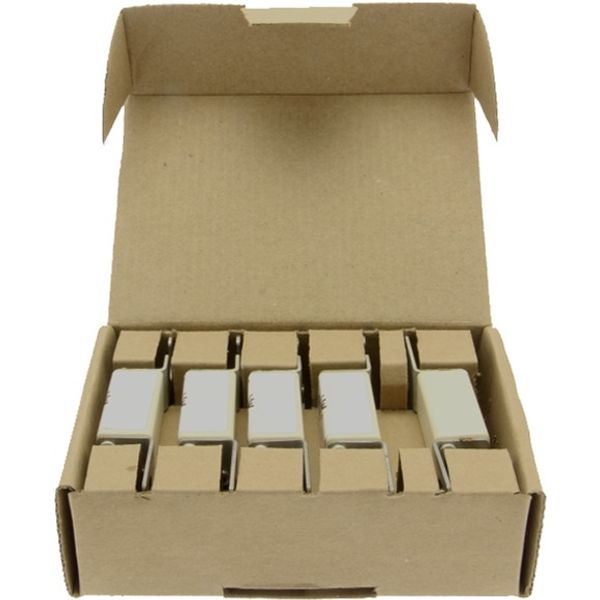

Box: 10
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Fuse-link, high speed, 32 A, AC 660 V, size 0000, 18 x 19 x 100 mm, gR, UL, visual indicator
Brand EATON
Categories HRC Fuses
Country of origin* IN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 1090 00
Type of current AC
Rated current 32 A
Utilization category gR (general purpose semiconductor protection)
Breaking capacity 200 kA
Rated voltage AC 660 V
Fuse construction type according to IEC 60269 Other

Packing details

Packing level 1 5027590440523
Packing level 2 5027590337724
Packing level 3 5027590344845

Other Technical data

Colour code None
Type of fuse status indicator Top fuse status indicator
Power loss at rated current 9 W
Centre-to-centre distance of connections 78 mm
Mounting holes M8

Description

Fuse, Fuse-link, high speed, 32 A, AC 660 V, size 0000, 18 x 19 x 100 mm, gR, UL, visual indicator, square body with offset bolted tags (slotted), semiconductor protection, UL 248-13, Breaking Capacity 200 kA
