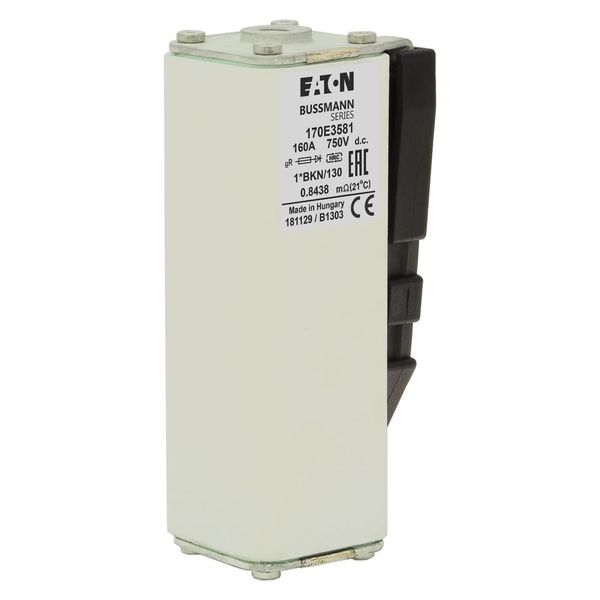

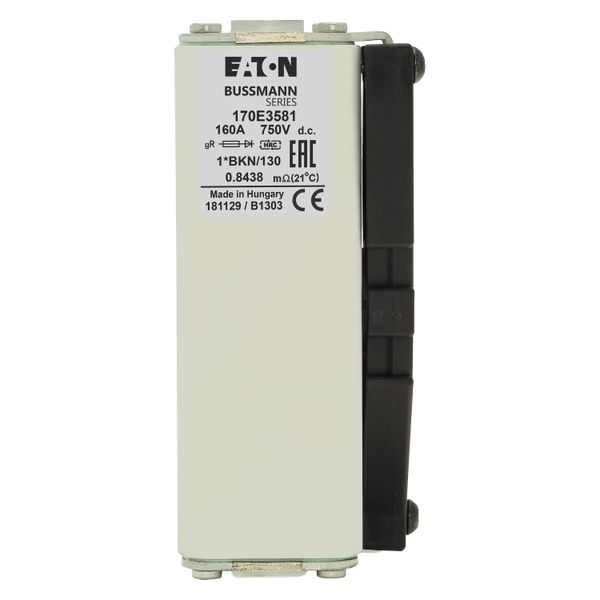

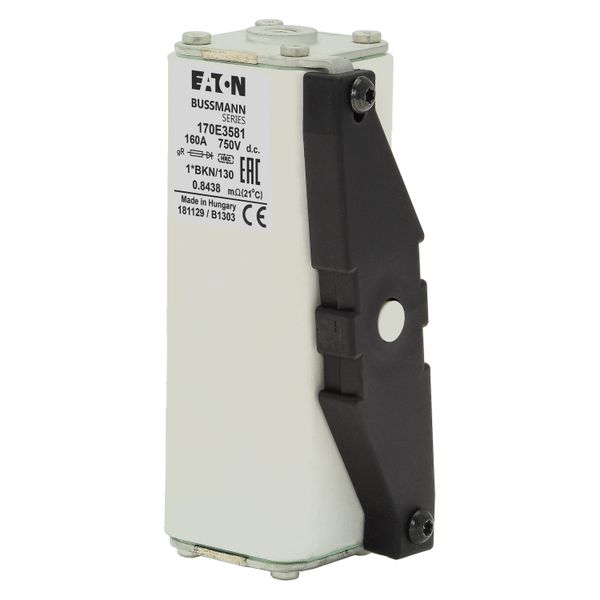

Fuse-link, high speed, 160 A, DC 750 V, compact size 1, gR, IEC, with indicator
In stock: No
Vendor stock: No
Minimal order quantity: 5
Price (excl. VAT):
246,85 €
Subtotal: 1 234,25 €
MOQ: 5
EAN: 5027590438391
MPN: 170E3581
Package: 1
Box: 5
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Fuse-link, high speed, 160 A, DC 750 V, compact size 1, gR, IEC, with indicator |
| Brand | EATON |
| Categories |
HRC Fuses
|
| Country of origin | HU |
| Harmonized System Code | 8536 1090 00 |
| Type of current | DC |
| Rated current | 160 A |
| Utilization category | gR (general purpose semiconductor protection) |
| Breaking capacity | 0.1 kA |
| Rated voltage DC | 750 V |
| Fuse construction type according to IEC 60269 | Other |

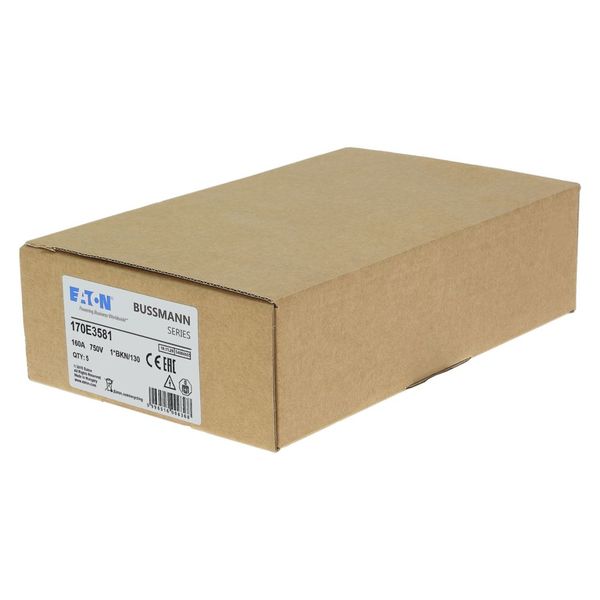

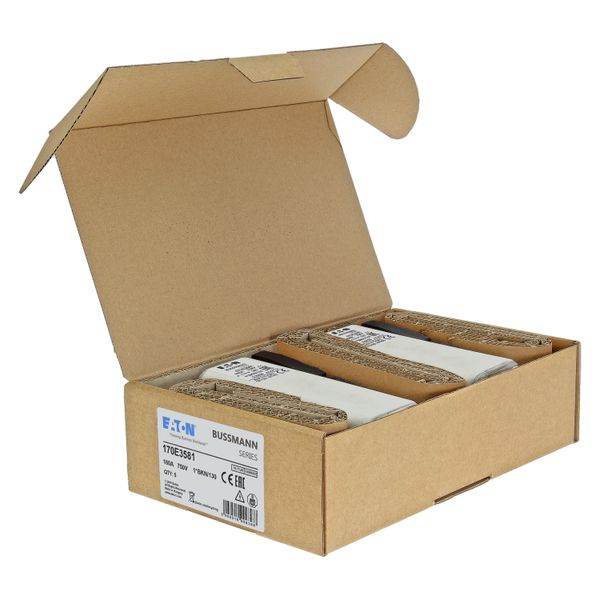

Packing details
| Packing level 1 | 5027590438391 |
| Packing level 2 | 5996516006368 |
Other Technical data
| Colour code | None |
| Type of fuse status indicator | Other |
| Power loss at rated current | 26 W |
| Centre-to-centre distance of connections | 3276.6 mm |
| Mounting holes | M8 |
Description
Fuse, Fuse-link, high speed, 160 A, DC 750 V, compact size 1, gR, IEC, with indicator, square body with flush end contacts, indicator style K for microswitch, traction, IEC 60269-4, Breaking Capacity 100 kA
