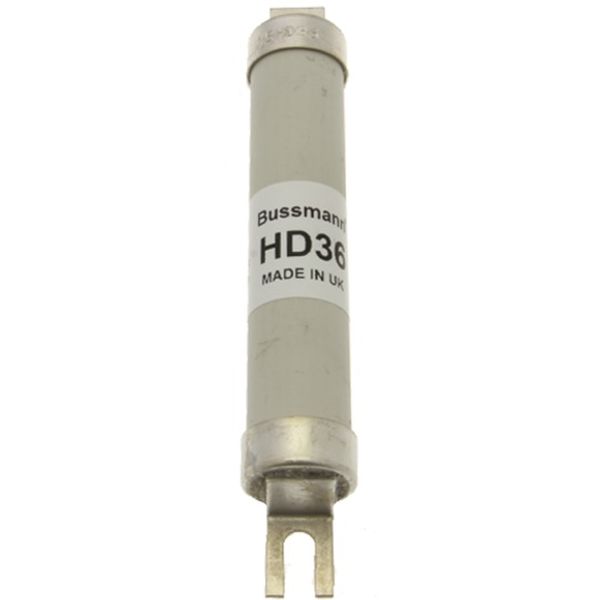

Fuse-link, high speed, 15 A, AC 1200 V, DC 750 V, 22 x 138 mm, gL/gG, BS
Order only
Minimal order quantity: 10
Price (excl. VAT):
40,02 €
Subtotal: 400,20 €
MOQ: 10
EAN: 5027590435031
MPN: 15HD36
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Fuse-link, high speed, 15 A, AC 1200 V, DC 750 V, 22 x 138 mm, gL/gG, BS |
| Brand | EATON |
| Categories |
HRC Fuses
|
| Country of origin | HU |
| Harmonized System Code | 8536 1050 00 |
| Type of current | AC/DC |
| Rated current | 15 A |
| Utilization category | gL/gG (cable protection/equipment protection) |
| Breaking capacity | 80 kA |
| Rated voltage AC | 1200 V |
| Rated voltage DC | 750 V |
| Fuse construction type according to IEC 60269 | Other |
Packing details
| Packing level 1 | 5027590435031 |
| Packing level 2 | 5027590033190 |
Other Technical data
| Colour code | None |
| Type of fuse status indicator | None |
| Power loss at rated current | 4.3 W |
| Centre-to-centre distance of connections | 122.4 mm |
| Mounting holes | M5 |
Description
Fuse, Fuse-link, high speed, 15 A, AC 1200 V, DC 750 V, 22 x 138 mm, gL/gG, BS, offset bolted tags (slotted), traction, BS, Breaking Capacity 80 kA
