  • DIV UQ gR 80A 500V

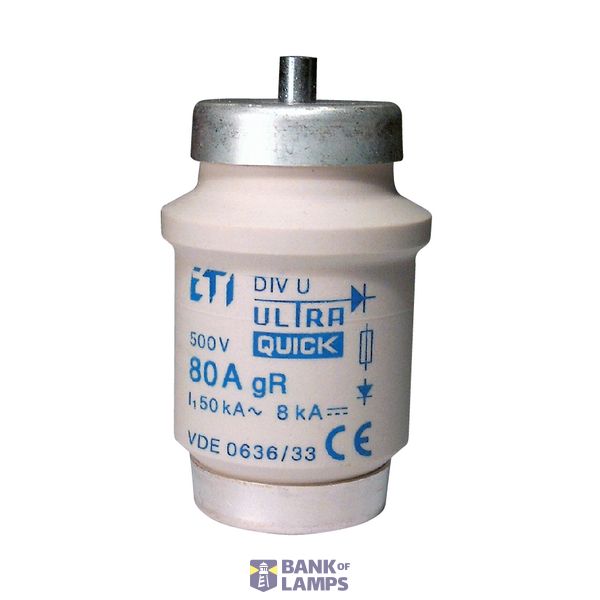

Product photo image 1
ETI

DIV UQ gR 80A 500V

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name DIV UQ gR 80A 500V
Brand ETI
ETIM EC000099
Rated current 80 A
Rated voltage 315 V
Release characteristic Super fast (FF)
Construction size DIV

Packing details

Packing level 1 3838895292555, 3838895292555
Packing level 2 3838895292555, 3838895292555
Packing level 3 3838895292562, 3838895292562
Packing level 4 3838895292555, 3838895292555

Other Technical data

Colour code Silver
Utilization category gR (general purpose semiconductor protection)

Description

Fuse link, DIV UQ gR 80A 500V, Breaking capacity AC (kA) 50, Breaking capacity DC (kA) 8, Characteristics gR (general purpose semiconductor protection), Dimensions R1 1/4, Indicator visual top, Product group Semiconductor Protection, Rated AC voltage (V) 500, Rated current (A) 80, Rated DC voltage (V) 315, Size DIV, Type D
