Dehn

Air-Termination Rod FS clamp ( clamp, D 16mm, Aluminum, for 2-fold connection for Round Conductor 8-1

Order only
EAN: 4013364133280
MPN: 380116
Package: 1
Price (excl. VAT)
4,81 €
per unit
MOQ: 1
EDT to our warehouse: 4-6 weeks
Price valid until 24.12.26 or while in stock

Technical Information

Item condition New
Manufacture name FS clamp (air-term. rod clamp D 16mm Al f. 2-fold connection f. Rd 8-1
Brand Dehn
Categories Earthing Products
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8538 9099 00
ETIM EC000514
Surface protection Untreated
Type of fastening screws Other
Material Aluminium
Diameter round conductor 1 16 mm

Packing details

Packing level 1 4013364133280, 4013364133280

Other Technical data

Type of connector Parallel connector
Diameter round conductor 2 8-10 mm

Downloads

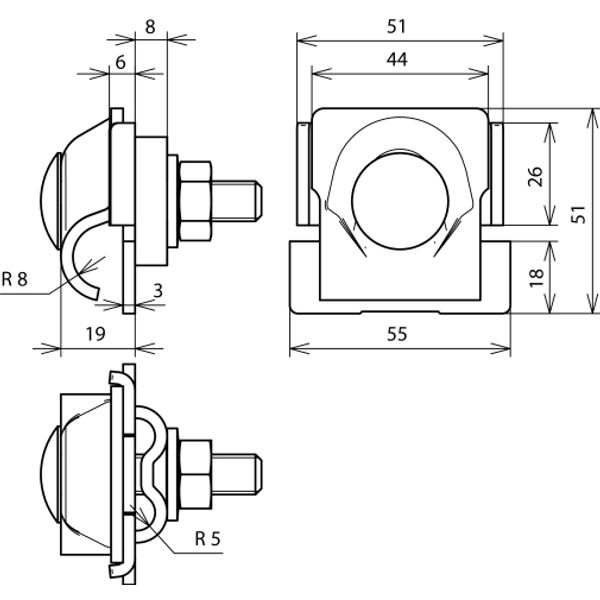

Product data sheet Dimensioned drawing

Description

FS clamp according to EN 62561-1, for connecting air-termination rods Rd 10 mm to two round conductors. With truss head screw and anti-rotation protection, for longitudinal or cross connection.
