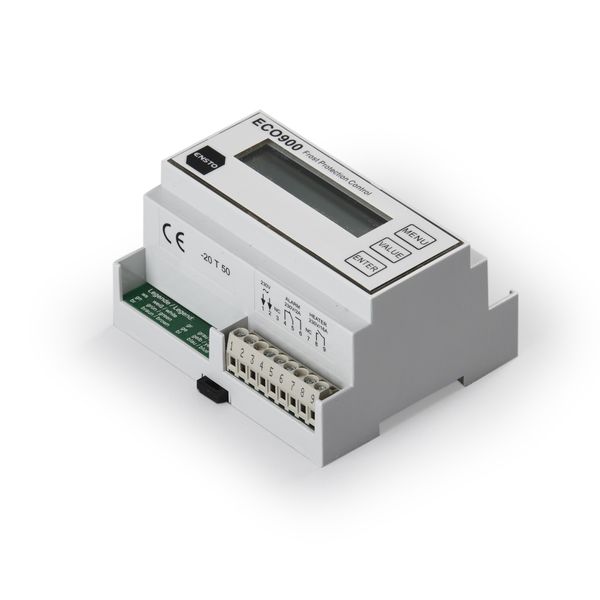

Frost protection thermostat ECO900 16A DIN

Order only

Price (excl. VAT):

300,54 €

This price is valid until 31.12.26

EAN: 6418677630866

MPN: ECO900

Package: 1

Pallet: 180

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Frost protection thermostat ECO900 16A DIN
Brand	Ensto
Categories	Cabinet Cooling and Heating
Model	Digital
Rated frequency	50 Hz
Nominal switching current at 230 V, not potential free	16 A
Sensor type	Other

Packing details

Packing level 1	6418677630866, 6418677630866
Packing level 2	6418677630866

Other Technical data

Number of channels	1
Width in number of modular spacings	6
Switching preselection	Yes
Operation mode switch	Yes
Text guidance in display	Yes
Degree of protection (IP)	IP20
Assembly depth	60 mm

Description

Device is designed for frost protection of big ground areas and roof rain water systems. In ground areas, a sensor pair ECOA901+ECOA902, which both must be installed into the ground, controls the heating and in rain water systems a sensor pair ECOA903+ECOA904. ECOA903 must be installed into gutter and ECOA904 into open air. Sensors are delivered separately. User can set up from the screen the frost protection rules, language settings, monitor hour meter, set up post heating and manual heating.
