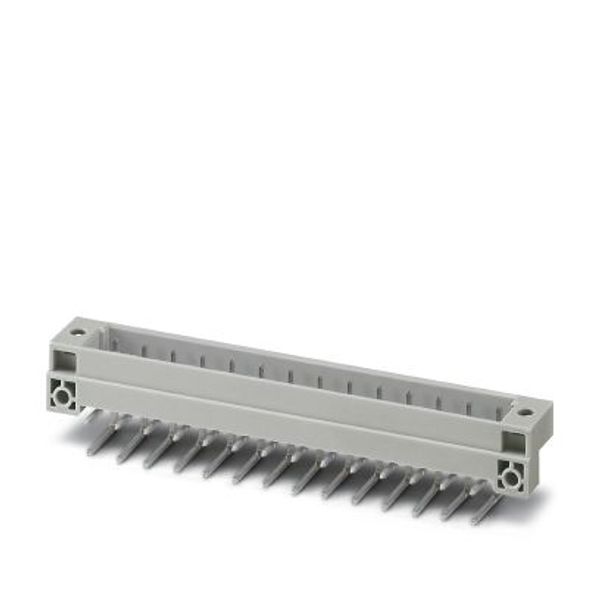

FRONT-FMC 1,5/D28-MF-6,35 - PCB header

Order only Minimal order quantity: 500

Price (excl. VAT):

8,50 € per pcs

This price is valid until 24.12.25

Subtotal: 4 250,00 € MOQ: 500

EAN: 4055626387765

MPN: 1714762

Package: 1

Box: 25

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	FRONT-FMC 1,5/D28-MF-6,35 - PCB header
Brand	Phoenix Contact
Categories	PCB Connectors & Terminals
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
Type of electric connection	Other
Connector model	Fixed connector

Packing details

Packing level 1	4055626387765
Packing level 2	4055626387765

Other Technical data

Colour housing	Other
Contact type	Pin
Type of fastening	Other
Inflammability class of insulation material according to with UL94	V0
Material of contact surface	Tin
Material insulation body	Other

Description

PCB headers, nominal cross section: 1.5 mm², color: light grey, nominal current: 6 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 56, number of rows: 2, number of positions: 28, number of connections: 56, product range: FRONT-FMC 1,5/..-MF, pitch: 6.35 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3 mm, number of solder pins per potential: 1, plug-in system: IEC 60603 Connectors - Type D, Pin connector pattern alignment: Standard, locking: Screw locking, mounting: Threaded flange, type of packaging: packed in cardboard
