Front connector module SIMATIC C CPU 313/314 (X1), 3x16-p. cable connect, screw
Discontinued
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Front connector module SIMATIC C CPU 313/314 (X1), 3x16-p. cable connect, screw |
| Brand | Siemens |
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| ETIM | EC001284 |
| Rated voltage | 60 V |
| Drill hole distance centrically | 0 mm |
| Rated current In | 1 A |
| Explosion-tested version 'Ex e' | No |
Packing details
| Packing level 1 | 4025515069850 |
Other Technical data
| Mounting method | Direct mounting |
| Colour | Black |
| Width | 0 mm |
| Halogen free | No |
| Height | 0 mm |
| Depth | 0 mm |
| Number of poles | 40 |
| Operating temperature | 0-60 °C |
| Number of clamp positions per pole | 0 |
| Closing plate required | No |
| Type of electrical connection 1 | Plug-in connection |
| Type of electrical connection 2 | Screw connection |
| Transparent | No |
| Connectable conductor cross section fine-strand with cable end sleeve | 0.25-0.75 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.25-0.75 mm² |
| Connectable conductor cross section multi-wired | 0.25-1.5 mm² |
| Material insulation body | Other |
Description

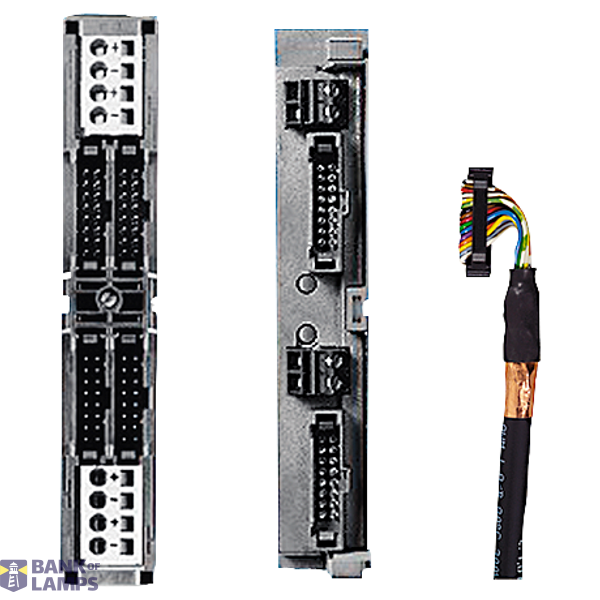

Front connector module with flat ribbon Cable connection for compact CPU 313C/314C-2PTP/314C-2DP for connection X1 Power supply over Screw terminals The front connector module for SIMATIC S7 C CPU 312 with screw terminals for potential feed to connect 3x16-pole cables represents a modified front connector for connection to the Kompakt CPU 313/314 (X1). This is plugged into the C CPU 313/314 (X1) to be wired instead of the front connector. Here the cables are plugged in and connected to the connection moduleThis modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors and actuators from the peripherals are attached to the connection modules of SIMATIC TOP connect and linked to the SIMATIC S7-300 via connecting cable and front plug-in module.
