Freistadt MV Reduz. SSD 2m3G4St32 Ea

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	Freistadt MV Reduz. SSD 2m3G4St32 Ea
Brand	PCE
Harmonized System Code	8537 1098 00
ETIM	EC000379
Handling	Portable
Contact material	CuZn
Degree of protection (IP)	IP54

Packing details

Packing level 1

9003399118289

Other Technical data

Colour	Black
Number of socket outlets with protective contact (type F)	1
Cable length	2 m
Protection	Overcurrent switch
Housing material	Rubber
Power supply/connection possibility	Feeder cable with plug
Type of mains connection	CEE 32 A
Number of poles mains connection	5

Downloads

Product data sheet

Description

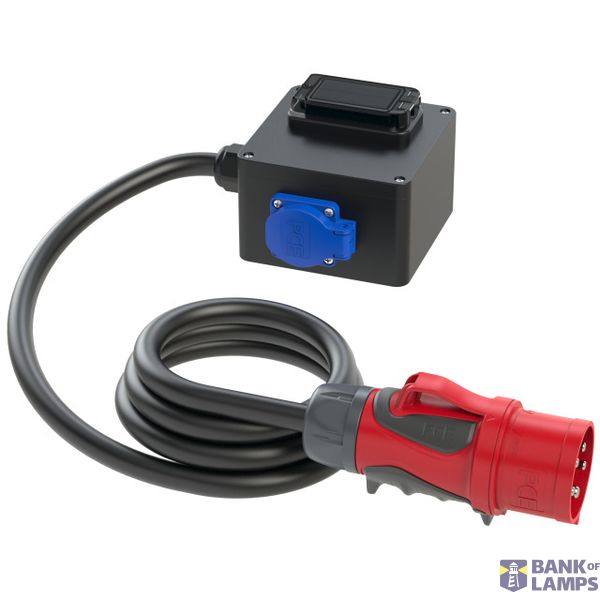

solid rubber distribution box model FREISTADT IP54 129x129x83mm
2m cable H07RN-F 3G4mm2 black with plug 32A 5p 400V
cable entry from bottom
1xSK socket 16A 250V IP54 fused with 1xMCB 16A 1p C
MCB are PCE VDE branded
Label: "Additional protection by residual current circuit breaker supply side required!"
distribution box is ready wired for using
