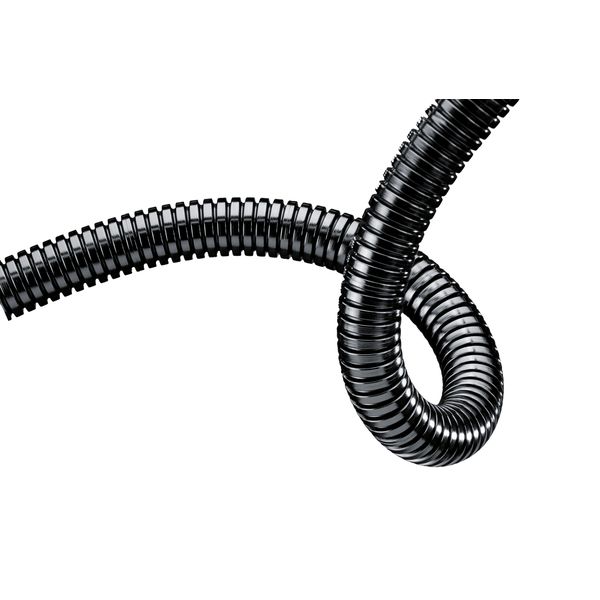

FPDRF-36B.25 zwart Flex kunstst beschermslang fijn dynamisc
Order only
Price (excl. VAT):
Price by request
EAN: 4049504224808
MPN: 4050003600
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | FPDRF-36B.25 zwart Flex kunstst beschermslang fijn dynamisc |
| Brand | FRÄNKISCHE |
| Categories |
Cable Hoses
|
| Harmonized System Code | 3917 3200 00 |
| Outer diameter | 42.4 mm |
| Inner diameter | 36.5 mm |
| Operating temperature | -50-90 °C |
| Sheathing material | Not sheathed |
| Material | Polyamide (PA) |
| Degree of protection (IP) | IP54 |
Packing details
| Packing level 1 | 4049504224808 |
Other Technical data
| Colour | Grey |
| Oil resistant | Yes |
| Halogen free | Yes |
| Material quality | Polyamide 12 |
| Fire resistance according to UL94 | V2 |
| Bending radius, static | 60 mm |
| Flame accelerating | No |
| Tensile strength | 460 N |
| Approved according to LUL/British Standard | No |
| Approved according to Lloyd's Register TA | No |
| Approved according to UTAC | No |
| Nominal diameter | 36 mm |
| Nominal size in inch | Other |
| Bending strength | Flexible |
| High conducting inner coating | No |
| Lengthwise slotted | No |
| Closable (two-part) | No |
| Approved according to DIN EN 61386-23 | No |
| With draw wire | No |
| Bending radius, dynamic | 155 mm |
| Approved according to DIN 5510 | No |
| Approved according to VdTÜV/GGVSEB | No |
Downloads
Declaration RoHS
Dimensioned drawing
Declaration DOC CE (Declaration of conformity CE)
Product data sheet
Construction Products Regulation
Description
FIPMOTION® flexibele kunststof beschermslang FPDR van hoogwaardig, speciaal geformuleerd polyamide 12, halogeenvrij, met fijn profiel. Onderscheidt zich door een uitstekende wisselbuigsterkte. Wordt toegepast bij continu bewegende verbindingen in de robotica.
