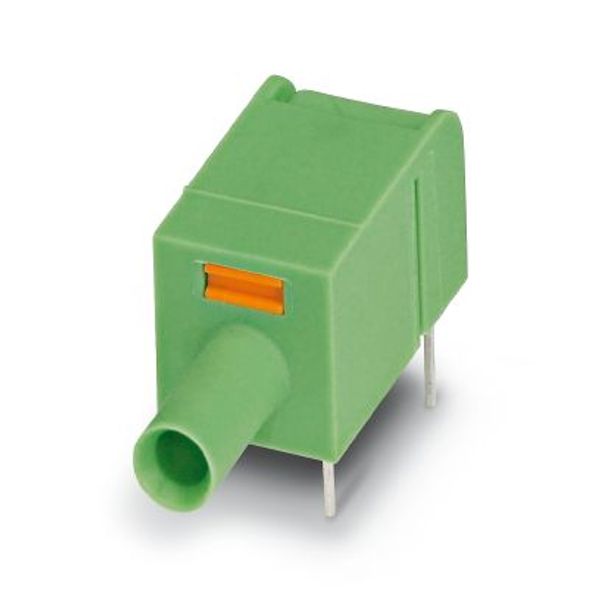

FOPT 2,2-T - FO PCB terminal block image 1

FOPT 2,2-T - FO PCB terminal block image 2

FOPT 2,2-T - FO PCB terminal block image 3

FOPT 2,2-T - FO PCB terminal block

Name: FOPT 2,2-T - FO PCB terminal block
Brand: Phoenix Contact
Price: 26.770 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 10

Price (excl. VAT):

26,77 € per pcs

This price is valid until 24.12.25

Subtotal: 267,70 € MOQ: 10

EAN: 4017918606237

MPN: 1907911

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	FOPT 2,2-T - FO PCB terminal block
Brand	Phoenix Contact
Categories	PCB Connectors & Terminals
Country of origin	PL
Harmonized System Code	8536 9010 00
Rated voltage	0 V
Number of levels	1
Rated surge voltage	0 kV
Angle PCB/conductor connection	Other
Rated current In	0 A
Number of electrical connections	1

Packing details

Packing level 1

4017918606237, 4017918606237

Other Technical data

Height	0 mm
Colour housing	Green
Operating temperature	0-70 °C
Over voltage category	III
Pollution degree	2
Connection type conductor	Spring clamp connection
Connection type PCB	Other
Diameter connection pin	0 mm
Length pin	0 mm
Modular spacing connections	10.16 mm
Type of banding	Carton (for SMD)
Type of PCB fastening	Connecting contact

Description

PCB terminal block, nominal cross section: 0 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: FOPT, pitch: 10.16 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, number of solder pins per potential: 4, type of packaging: packed in cardboard. Green housing with transmit diode/fiber optics that can be connected: polymer fiber (according to IEC 60793-2 type A4a, diameter of outer sheath: 2.2 mm)/data rate: 5 Mbps/transmission distance: max. 50 m/detailed data sheet in download area
