SACC-E-M12MSS-3P-M16/0,5 PE - Device connector front mounting
Order only
Price (excl. VAT):
10,12 €
per pcs
EAN: 4046356936705
MPN: 1411655
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SACC-E-M12MSS-3P-M16/0,5 PE - Device connector front mounting |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 630 V |
| Contact type | Pin |
| Ambient temperature | 85 °C |
| Degree of protection (IP), mounted | IP65/IP67 |
| Diameter connector | 0 mm |
| Rated current In | 16 A |
| Number of power contacts | 0 |
| Number of control contacts | 3 |
| Number of data contacts | 0 |
Packing details
| Packing level 1 | 4046356936705, 4046356936705 |
Other Technical data
| Locking mechanism | Other |
| Screened | No |
| Housing material | Other |
| With status indication | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material of contact surface | Nickel |
| Thread size M | 0 |
| Over voltage category | III |
| Pollution degree | 3 |
| Type of housing | Straight |
| With protective conductor | No |
| Min. number of insertion cycles | 100 |
| Material thread ring | Other |
Description

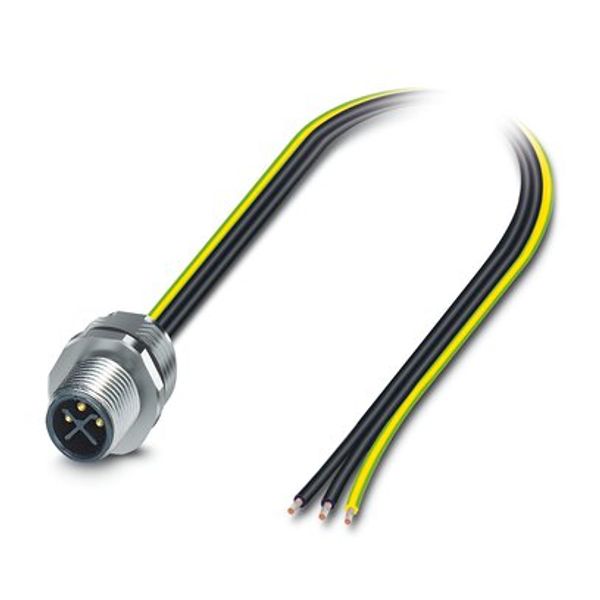

Device connector front mounting, Power, 3-position, Flush-type male connector, straight, M12-Standard, coding: S , on free cable end, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 1.31 mm², UL/cUL stranded hook-up wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb <0.1%) item no.: 1238909
Accessories
Order only
Phoenix Contact
SACC-E-MU-M16 - Flat nut
0,399 €
per pcs
Subtotal: 39,90 €
MOQ: 100
EAN: 4017918833473
MPN: 1504097
Box: 1
