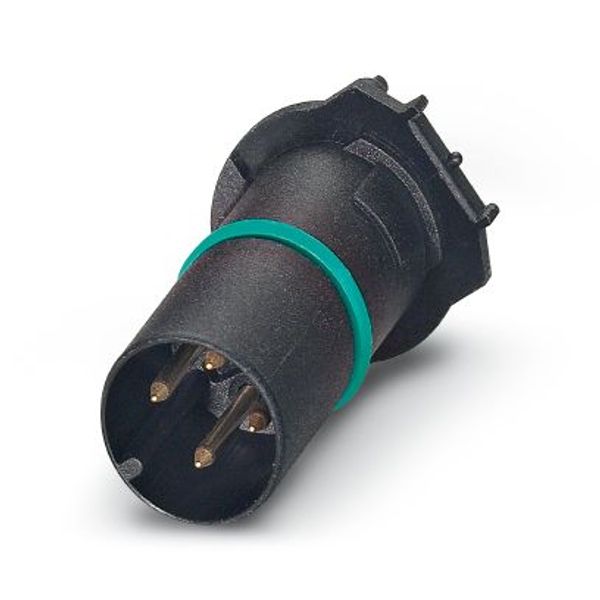

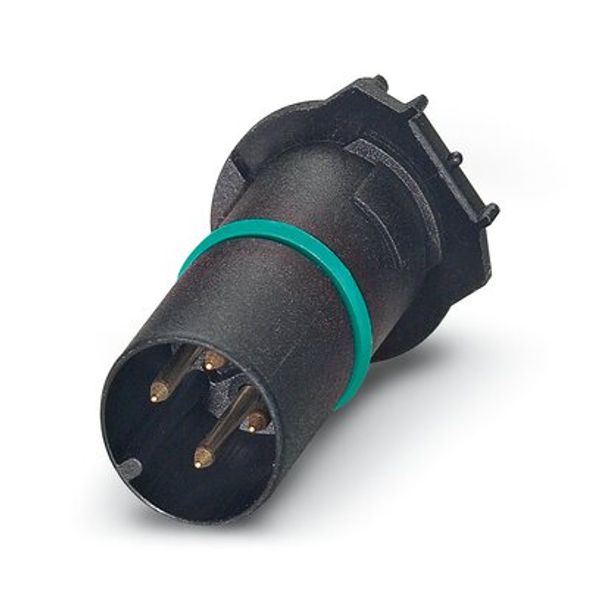

SACC-CI-M12MS-4CON-L180 THR - Contact carrier
Order only
Minimal order quantity: 60
Price (excl. VAT):
2,44 €
per pcs
Subtotal: 146,40 €
MOQ: 60
EAN: 4046356457118
MPN: 1437164
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SACC-CI-M12MS-4CON-L180 THR - Contact carrier |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| Rated voltage | 250 V |
| Contact type | Pin |
| Ambient temperature | 85 °C |
| Degree of protection (IP), mounted | IP67 |
| Diameter connector | 0 mm |
| Rated current In | 4 A |
| Number of power contacts | 0 |
| Number of control contacts | 4 |
| Number of data contacts | 0 |
Packing details
| Packing level 1 | 4046356457118, 4046356457118 |
Other Technical data
| Locking mechanism | Other |
| Screened | No |
| Housing material | Other |
| With status indication | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material of contact surface | Gold |
| Thread size M | 0 |
| Over voltage category | II |
| Pollution degree | 3 |
| Type of housing | Straight |
| With protective conductor | No |
| Min. number of insertion cycles | 100 |
Description
Flush-type connector, Universal, 4-position, Plug, straight, A-coded, PCB mounting, THR solder connection item no.: 1239649
