SACCBP-M12MSD-4CON-M16/1,0-931 - Device connector, rear mounting
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
22,11 €
per pcs
EAN: 4046356153591
MPN: 1551574
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SACCBP-M12MSD-4CON-M16/1,0-931 - Device connector, rear mounting |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8544 4290 00 |
| Rated voltage | 48 V |
| Contact type | Pin |
| Ambient temperature | 85 °C |
| Degree of protection (IP), mounted | IP65/IP67 |
| Diameter connector | 0 mm |
| Rated current In | 4 A |
| Number of power contacts | 0 |
| Number of control contacts | 4 |
| Number of data contacts | 0 |
Packing details
| Packing level 1 | 4046356153591, 4046356153591 |
Other Technical data
| Locking mechanism | Other |
| Screened | Yes |
| Housing material | Other |
| With status indication | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material of contact surface | Nickel |
| Thread size M | 0 |
| Over voltage category | II |
| Pollution degree | 3 |
| Type of housing | Straight |
| With protective conductor | No |
| Min. number of insertion cycles | 0 |
| Material thread ring | Other |
Description

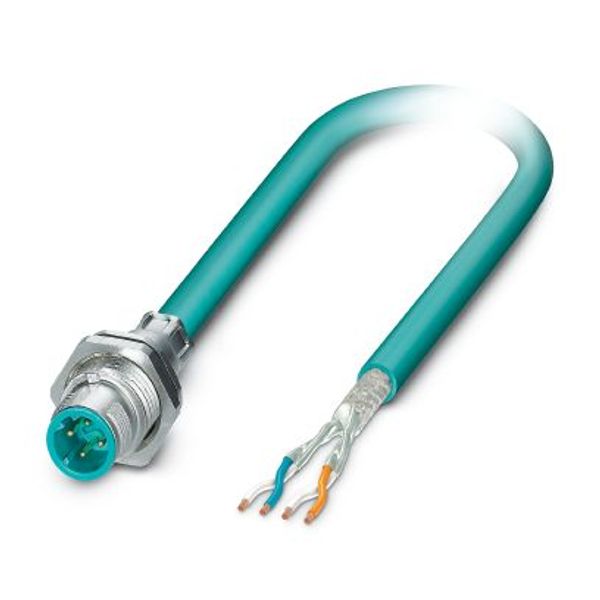

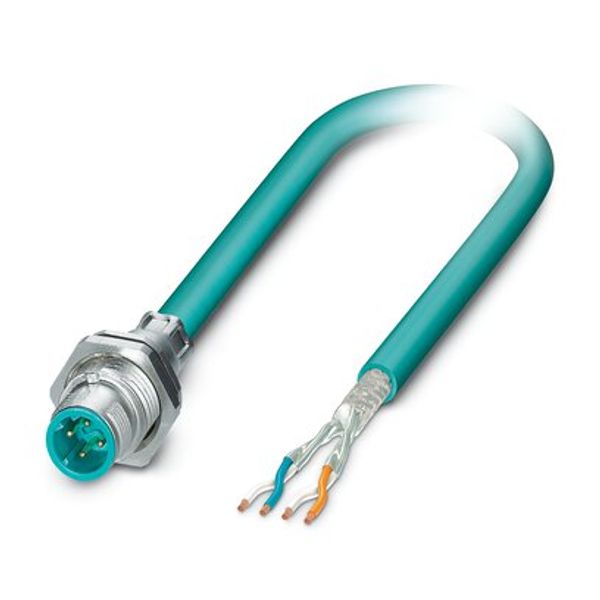

Device connector, rear mounting, Ethernet CAT5 (100 Mbps), Ethernet, 4-position, PUR, water blue RAL 5021, Plug, straight, M12, coding: D , on free cable end, Rear mounting, M16 x 1.5 thread with flat nut, Bus line, cable length: 1 m, Ethernet, Alternative product in accordance with RoHS II without Exemption 6c (Pb <0.1%) item no.: 1239990
