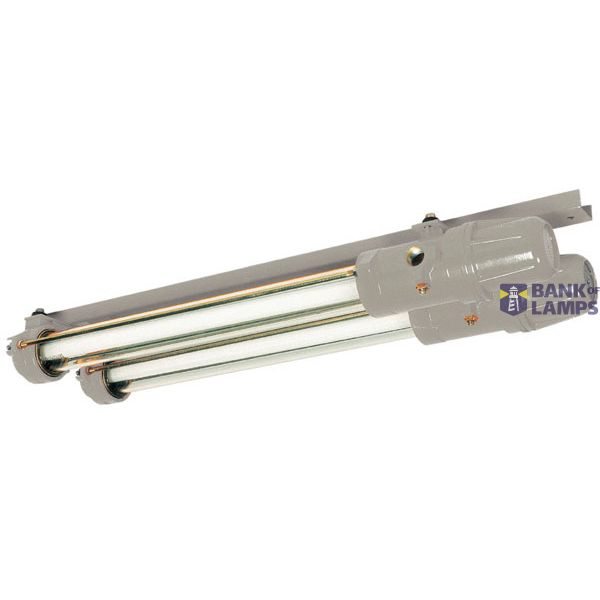

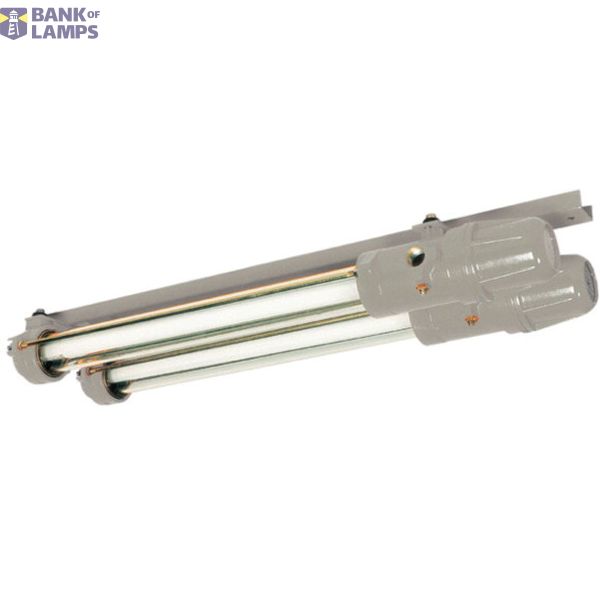

FLUORESCENT LUM. EXDIIC 2X36W EVF240
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | FLUORESCENT LUM. EXDIIC 2X36W EVF240 |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 145 mm |
| Length | 1.598 mm |
| Height/depth | 120 mm |
| Lamp type | Fluorescent lamp |
| Degree of protection (IP) | IP67 |
| Beam angle | Wide beam 41-80° |
Packing details
| Packing level 1 | 8435156904568 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | G13 |
| Conductor cross section | 2.5 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC/DC |
| Suitable for lamp power | 36 W |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | No |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| For Ex-Zone dust | None |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -20-55 °C |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Description
Ex-d light fitting with conventional ballast for fluorescent lamps for Zone 1/21EVF 240 C (2 x 36/40 W), 1 x 3/4'' cable gland, 1 x 3/4'' NPT metal thread with dust cap
