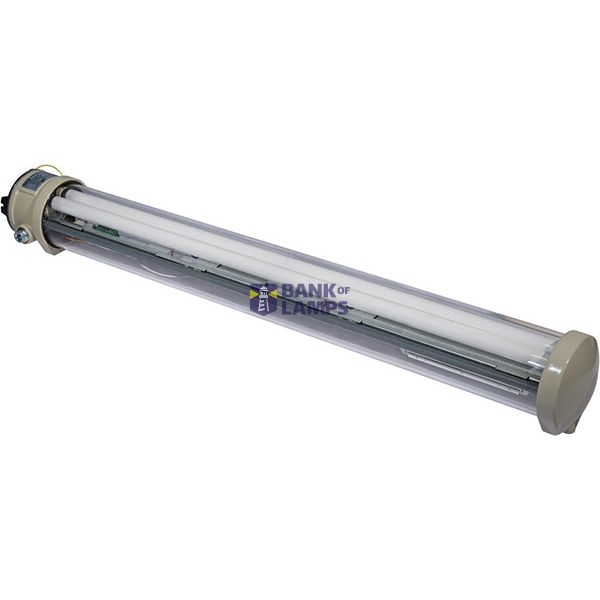

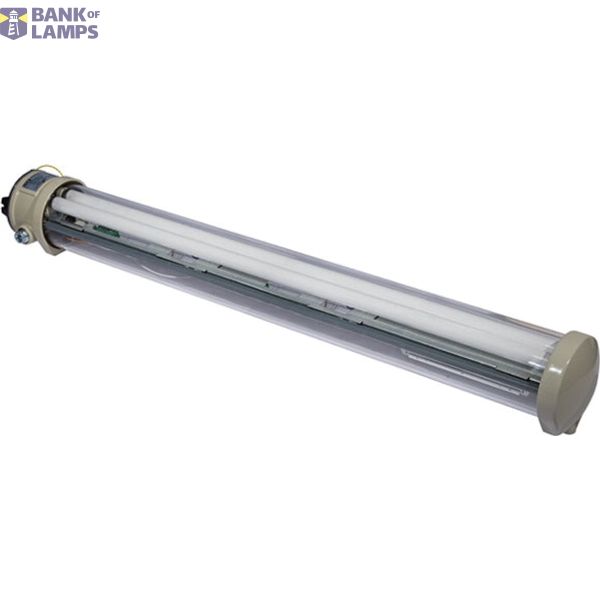

FLUORESC. LUM. ExdIIB 2X18W AB12220C M25
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | FLUORESC. LUM. ExdIIB 2X18W AB12220C M25 |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 236 mm |
| Height/depth | 144 mm |
| Lamp type | Fluorescent lamp |
| Nominal voltage | 230-277 V |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 8435156930185 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | G13 |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC |
| Suitable for lamp power | 18 W |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | No |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Description
Ex-d light fitting with conventional ballast for fluorescent lamps for Zone 1/21AB 12220 C (2 x 18/20 W), -, 1 x M25 cable gland, 1 x M25 metal thread with dust cap
