FLUOR. LUM. ExdIIB 2X18W 4A 1,5h AB12NI
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | FLUOR. LUM. ExdIIB 2X18W 4A 1,5h AB12NI |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 236 mm |
| Height/depth | 144 mm |
| Lamp type | Fluorescent lamp |
| Nominal voltage | 230-277 V |
| Degree of protection (IP) | IP67 |
Packing details
| Packing level 1 | 8435156919470 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | G13 |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC |
| Suitable for lamp power | 18 W |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | No |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Description

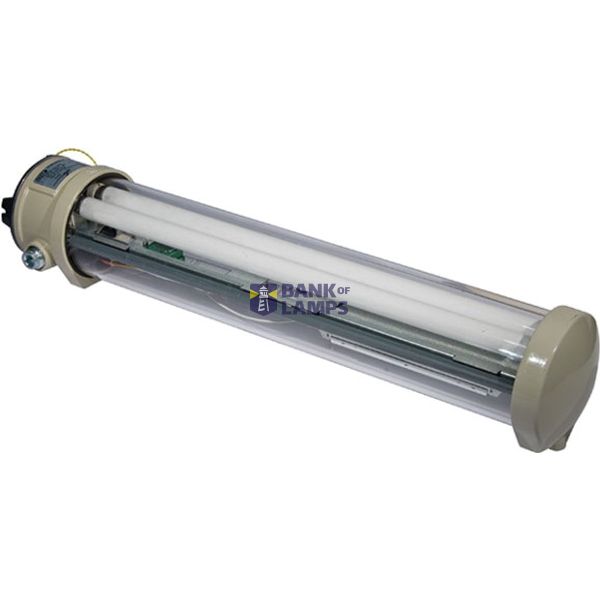

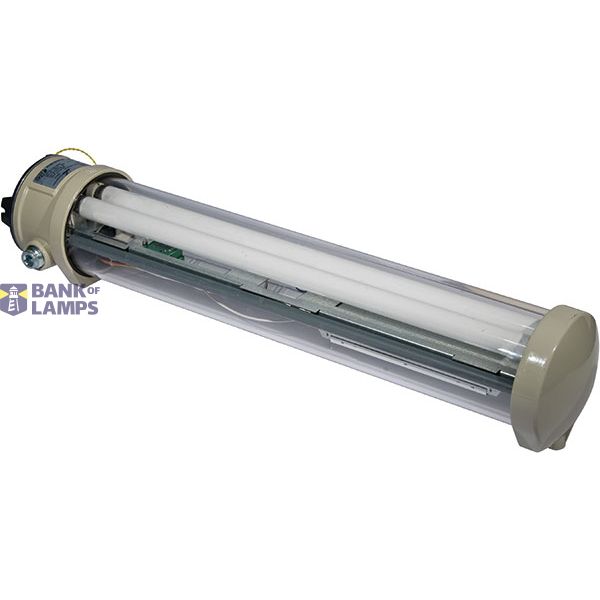

Ex-d self contained light fitting for fluorescent lamps for Zone 1/21AB 12 Ni 18/18 1,5h (2 x 18 W), 1 x 3/4'' cable gland, 1 x 3/4'' NPT metal thread with dust cap
