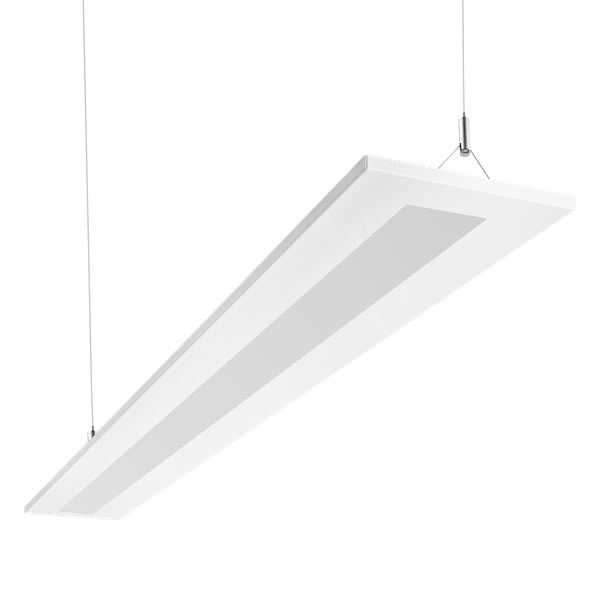

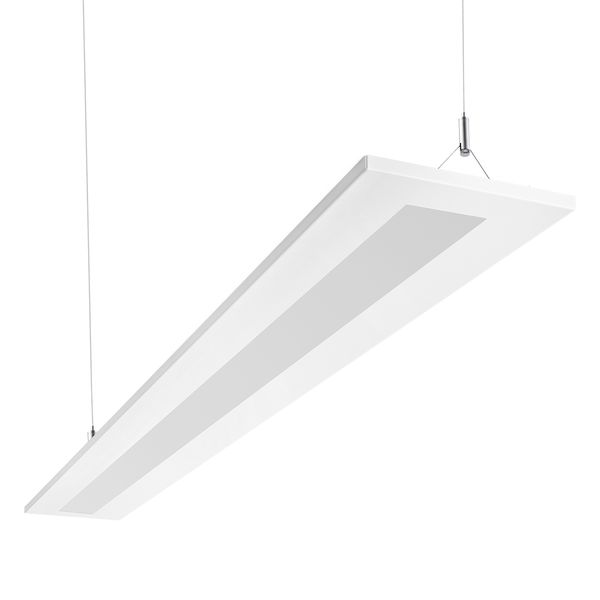

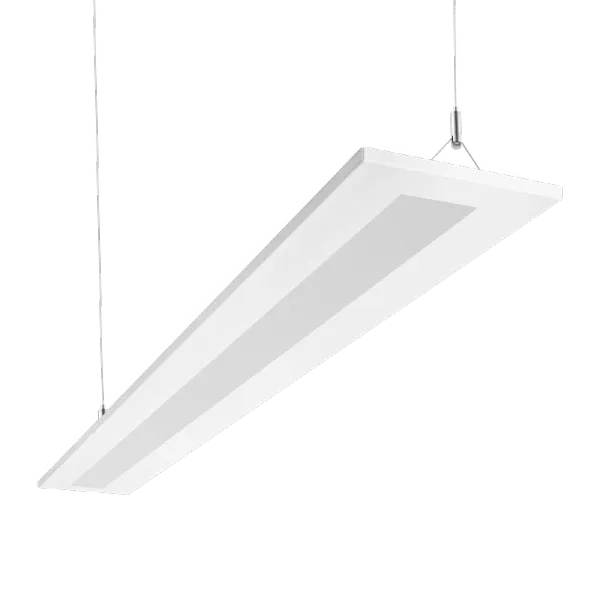

FLEXILED 5PL21S/C840WH9016OP1500/150
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4046075218632
MPN: 3123685
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | FLEXILED 5PL21S/C840WH9016OP1500/150 |
| Brand | Performance in Lighting |
| Categories |
Pendant lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |

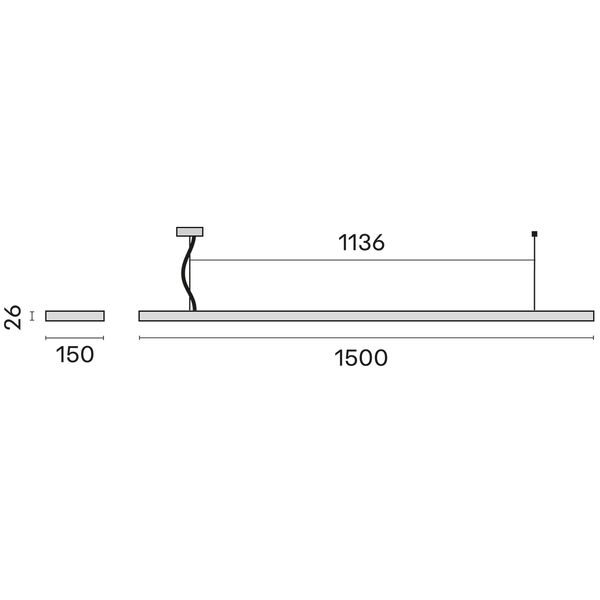

| Width | 150 mm |
| Colour rendering index CRI | 80-89 |
| Length | 1500 mm |
| Height/depth | 31 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK05 |
| Nominal voltage | 220 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 4000 K |
| Max. system power | 70 W |
Packing details
| Packing level 1 | 4046075218632, 4046075218632 |
Other Technical data
| Protection class | I |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| Suitable for lamp power | 22 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 3 |
| Housing material | Steel |
| Direct-/indirect proportion separately controllable | No |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct/indirect |
| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| Pendant length | 150 mm |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| With suspension | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Nominal current | 292 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Degree of protection (NEMA) | 1 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 25 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 85 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 78 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 1 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 1.2 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0.7 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Positions |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description
Pendelarmatuur voor binnen, bestaande uit: Behuizing van vormvast 1,0 mm plaatstaal. Slagvaste, afdrukbestendige poedercoating. Afscherming van opaal PMMA voor een optimale lichtverspreiding en een grote gelijkmatigheid. UGR <19 voor alle lichtstromen. Directe. Indirecte lichtverdeling. Onderhouds- en installatievriendelijk ontwerp (voldoet aan de Eco-Design richtlijn 2019/2020 van de EU). Hoogste waarden voor efficiëntie en levensduur voor subsidietoekenning en gebouwcertificering (bijv. BEG-subsidie, LEED, BREEAM). Betrouwbaar en onderhoudsarm 50.000u L80B10. Kleurtolerantie volgens MacAdam ≤3 SDCM. 2 vermogensniveaus instelbaar. Incl. ophanging met stalen kabel (1,5 mt), transparante voedingskabel en rozet. Configureerbaar via LIGHT-PERFORMER®. Uitvoering in speciale kleuren op verzoek leverbaar.
