FLEXILED 5IL28S/A840WH9016LB1495/295
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4046075197425
MPN: 3122382
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | FLEXILED 5IL28S/A840WH9016LB1495/295 |
| Brand | Performance in Lighting |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Built-in mounting lamps |
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |

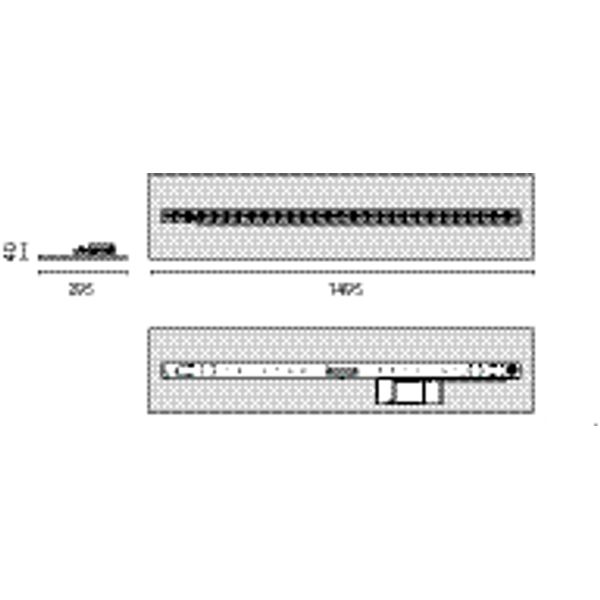

| Width | 295 mm |
| Colour housing | White |
| Colour rendering index CRI | 80-89 |
| Length | 1495 mm |
| Height/depth | 12 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK05 |
| Nominal voltage | 220 V |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 4000 K |
| Max. system power | 32 W |
Packing details
| Packing level 1 | 4046075197425, 4046075197425 |
Other Technical data
| Protection class | I |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 19 W |
| Type of grid | Other |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Steel |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | Yes |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | No |
| Nominal current | 133 mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Photobiological safety according to EN 62471 | RG0 |
| Degree of protection (NEMA) | 1 |
| Rated ambient temperature according to IEC62722-2-1 | 0 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 19 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 79 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 70 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 55 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0.8 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 1 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 1.2 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0.7 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | Positions |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Surface protection housing | Powder coating |
| Power factor | 0.9 |
Downloads
Description
Inbouwarmaturen voor binnen, bestaande uit: Behuizing van vormstabiel 1,0 mm plaatstaal. Slagvaste, afdrukbestendige poedercoating. Zwarte reflector zorgt voor maximaal rendement en hoog visueel comfort. Geschikt voor kantoortoepassingen conform EN 12464-1. UGR <19 voor alle lichtstromen. Betrouwbaar en onderhoudsarm 50.000u L80B10. Kleurtolerantie volgens MacAdam ≤3 SDCM. 2 vermogensniveaus instelbaar. Incl. voorgemonteerde installatieveer. Uitvoering in speciale kleuren op verzoek leverbaar
