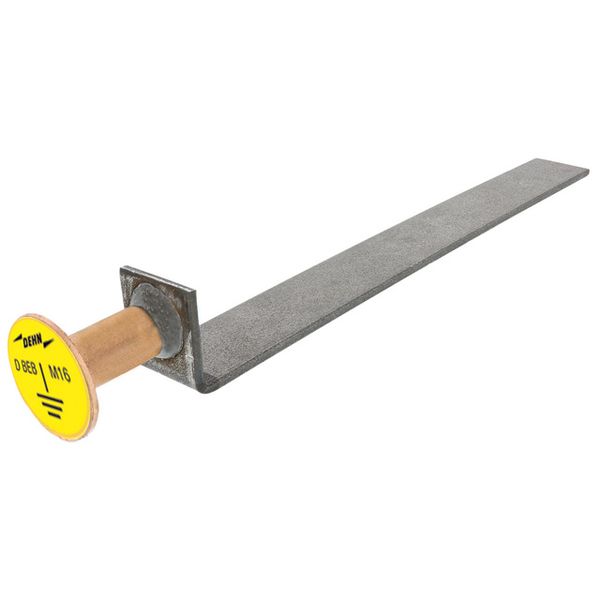

Flat steel earthing bridge, conn. plate with M16 thread D 50mm h 402mm

Order only

Price (excl. VAT):

22,31 €

This price is valid until 24.12.25

EAN: 4013364439450

MPN: 419011

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Flat steel earthing bridge, conn. plate with M16 thread D 50mm h 402mm
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9010 00
Length	58 mm
Material	Stainless steel V2A
Connecting shaft	402 mm
Diameter connection plate	50 mm
Material connection lug	Other

Packing details

Packing level 1

4013364439450, 4013364439450

Downloads

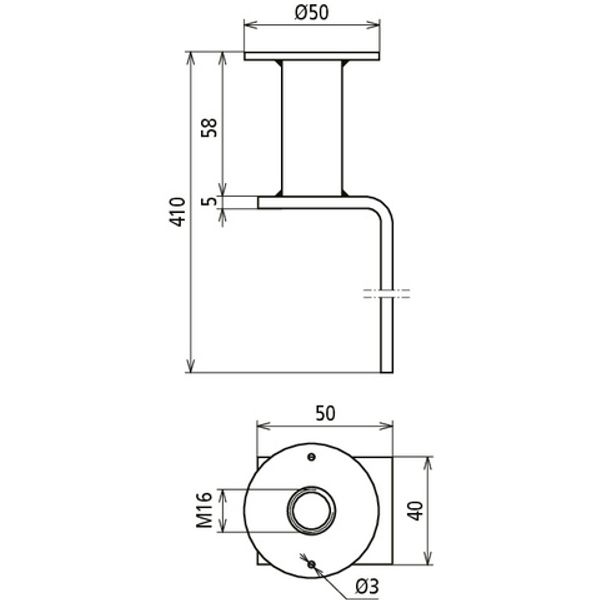

Product data sheet Dimensioned drawing

Description

Flat steel earthing bridge according to the guideline of DB Netz AG Ril 997.0205A01, for earthing, current return circuits and equipotential bonding in railway line applications. Consisting of a connection plate made of stainless steel with M16 thread and angled flat steel. Designed for short-circuit currents > 25 kA.
