FLAT SLIM round, 28...43 W, 2450...4000 lm, 830, 840, white, on/off Ce
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
640,62 €
EAN: 4051859981299
MPN: 672658.002.04
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | FLAT SLIM round, 28...43 W, 2450...4000 lm, 830, 840, white, on/off Ce |
| Brand | RZB |
| Categories |
Emergency luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Lamp type | LED not exchangeable |
| Impact strength | IK03 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 3000-4000 K |
| Max. system power | 43 W |
Packing details
| Packing level 1 | 4051859981299, 4051859981299 |
Other Technical data
| Mounting method | Wall surface mounted / ceiling surface mounting |
| Protection class | I |
| Outer diameter | 400 mm |
| Function | Escape route lighting |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Plug-in connection |
| Colour housing | White |
| Voltage type | AC |
| Power supply system | Peripheral (individual battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | No |
| Number of poles | 6 |
| Housing material | Aluminium |
| Number of lighting heads | 1 |
| Material cover | Glass opal |
| Battery quality | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Other |
| Nominal current | 117-127 |
| Constant light output (CLO) | No |
| With pictogram | No |
| Type of wiring | Suitable for through wiring |
| Luminous flux in standby mode | 120 lm |
| Degree of protection (NEMA) | Other |
| Light distributor | Other |
| Nominal operation time | 8 h |
| Max. number of luminaires per miniature circuit breaker C16 | 85 |
| Max. number of luminaires per miniature circuit breaker B16 | 50 |
| Exchangeable control gear | Yes |
| Power factor | 0.95 |
Downloads
Description

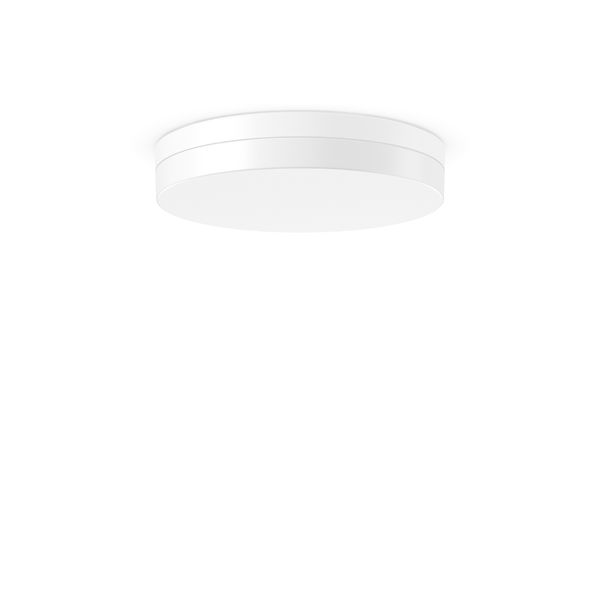

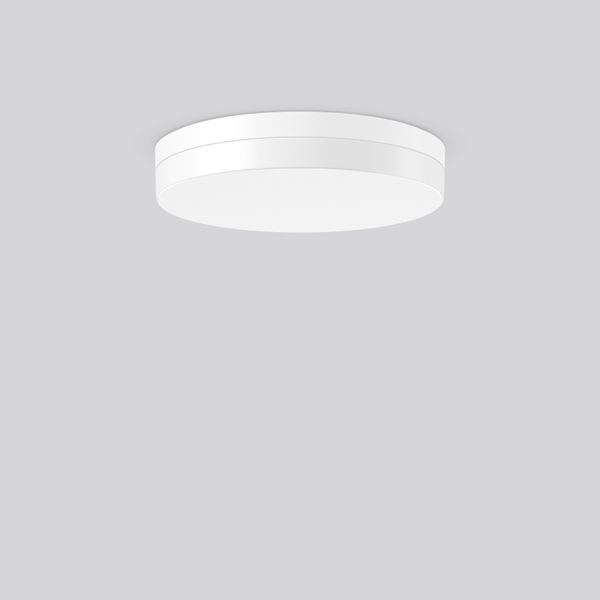

Decorative round surface-mounted luminaire for indoor and outdoor use. Base: pressure die-cast aluminium, powder-coated. Standard Gore™ Protective Vents diaphragm valve to avoid condensation. Mouth blown 3-layer opal glass (Triplex glass) with satin finish. Glass fastening: bayonet fixing. Uniform lighting achieved by the use of LED panel boards. Suitable for Ceiling mounting, Wall (surface). Very easy installation thanks to plug & play connection. The large connection compartment on the back for convenient connections is also ideal for through wiring.
