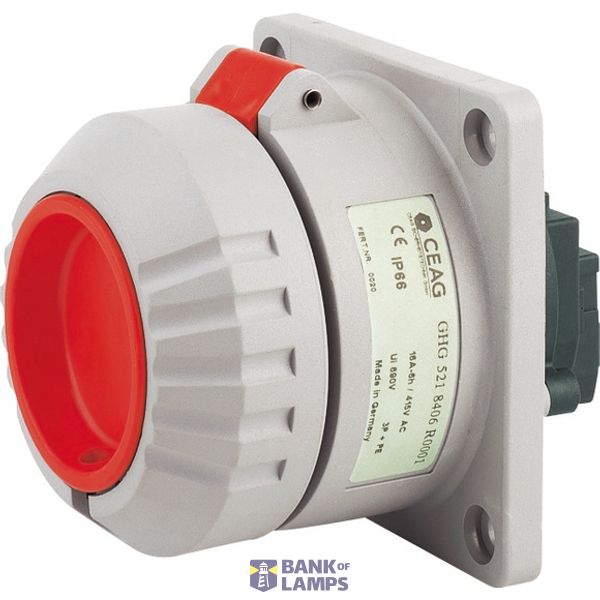

FLANGE SOCKET 16A-5POL-6H/240/415V image 1
FLANGE SOCKET 16A-5POL-6H/240/415V image 2
FLANGE SOCKET 16A-5POL-6H/240/415V image 3
FLANGE SOCKET 16A-5POL-6H/240/415V thumbnail 1
FLANGE SOCKET 16A-5POL-6H/240/415V thumbnail 2
FLANGE SOCKET 16A-5POL-6H/240/415V thumbnail 3
EATON

FLANGE SOCKET 16A-5POL-6H/240/415V

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name FLANGE SOCKET 16A-5POL-6H/240/415V
Brand EATON
ETIM EC001317
Number of poles 5
Material Plastic
IEC-amperage 16 A
Connection system Screwed terminal
Rated voltage 415 V

Packing details

Packing level 1 4250217407314

Other Technical data

Cable entry Other
Rated frequency 50-60 Hz
Surface treatment contacts Other
Angle of plug Straight
Contact material Other
Degree of protection (IP) IP66
Military model No
Clock hour position 6 h
Identification colour Red
Voltage according to EN 60309-2 400 V (50+60 Hz) red

Description

Flange socket for industrial application, 16 A, 5-pole346-415 V, 6 h, 1 cable gland
