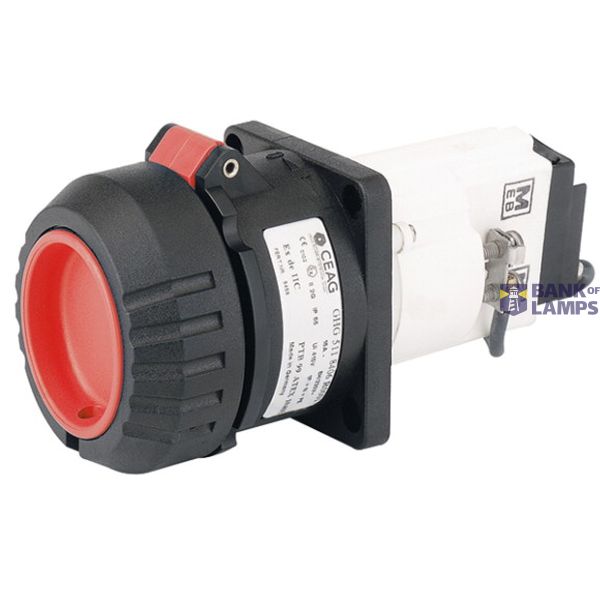

Flange socket 16A-3POL-4H image 1
Flange socket 16A-3POL-4H image 2

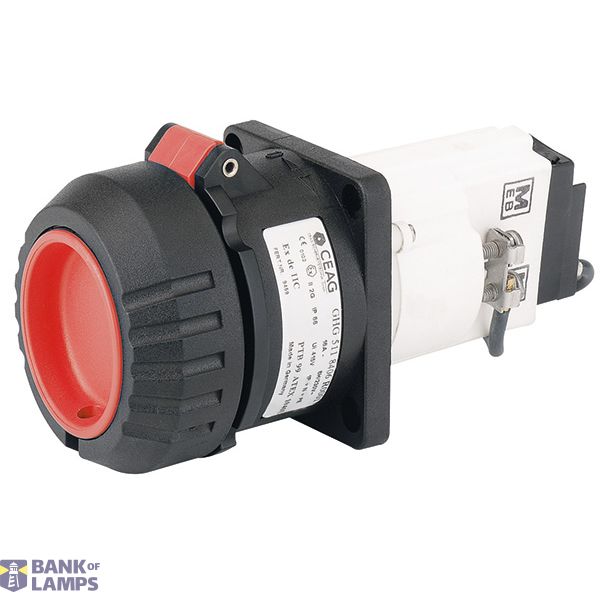

Flange socket 16A-3POL-4H image 3
Flange socket 16A-3POL-4H image 4
Flange socket 16A-3POL-4H thumbnail 1
Flange socket 16A-3POL-4H thumbnail 2
Flange socket 16A-3POL-4H thumbnail 3
Flange socket 16A-3POL-4H thumbnail 4
EATON

Flange socket 16A-3POL-4H

Order only Not Available
Estimate delivery time to our warehouse: By request

Technical Information

Item condition New
Manufacture name Flange socket 16A-3POL-4H
Brand EATON
ETIM EC000016
Nominal current 16 A
Model Base unit and cover
Switch Mechanical locking
Ex-class IIC
Number of poles 3
Housing material Plastic
Surface treatment contacts Untreated
Mounting direction Horizontal/vertical
Contact material Other
For Ex-zone gas 1, 2
Clock hour position 4 h
Identification colour Yellow
Voltage according to EN 60309-2 110 V (50+60 Hz) yellow
For Ex-Zone dust 21, 22

Packing details

Packing level 1 4250959974006

Description

Flange socket 16A-3POL-4H,Zone 1 /21,
