FL300LED PL 24 840 DALI WIT OP
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 4052075134049
MPN: 8300291236400
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | FL300LED PL 24 840 DALI WIT OP |
| Brand | Performance in Lighting |
| Categories |
Pendant lights
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |

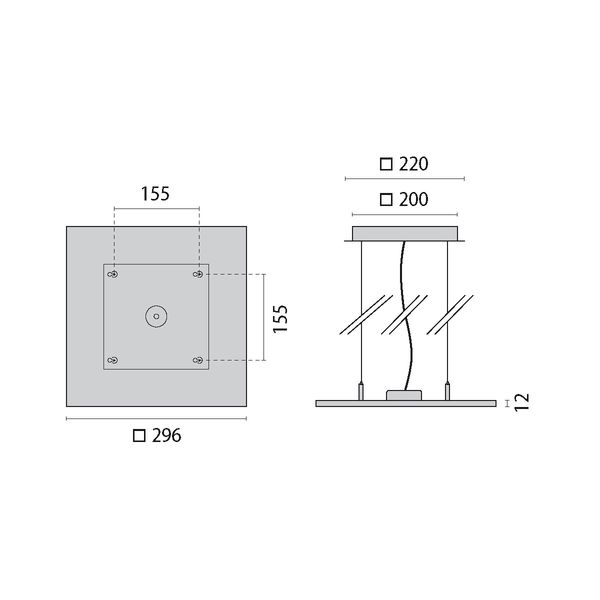

| Width | 296 mm |
| Colour rendering index CRI | 80-89 |
| Length | 296 mm |
| Height/depth | 12 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK06 |
| Nominal voltage | 220 V |
| Degree of protection (IP) | IP20 |
| Colour temperature | 4000 K |
| Max. system power | 18.8 W |
Packing details
| Packing level 1 | 4052075134049, 4052075134049 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Push-in clamp |
| Colour housing | White |
| Voltage type | AC/DC |
| Suitable for lamp power | 17 W |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| Number of poles | 5 |
| Housing material | Aluminium |
| Direct-/indirect proportion separately controllable | No |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |

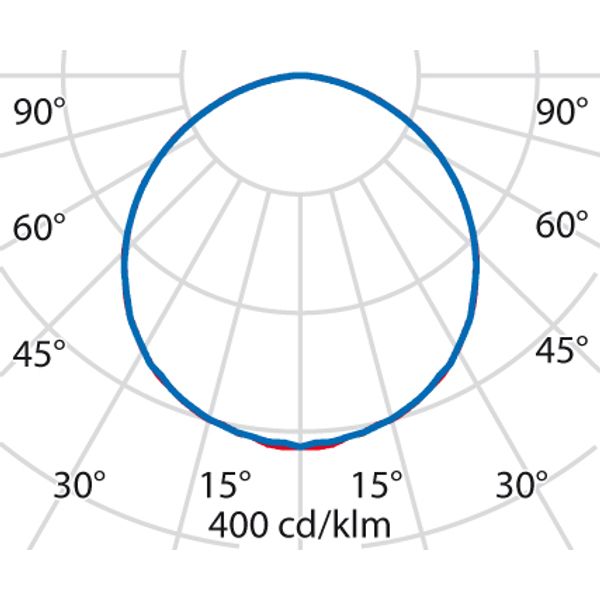

| Light sharing | Symmetric |
| Material cover | Plastic, opal |
| Pendant length | 150 mm |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| With suspension | No |
| Suitable for workplace according to EN 12464-1 | No |
| Nominal current | 113 mA |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 99800 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Degree of protection (NEMA) | 1 |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Touch and Dim | Yes |
| Dimming Zigbee | No |
| Dimming with push-button | Yes |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 25 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 85 % |
| Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 78 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 1 % |
| Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) | 1.2 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0.7 |
| Stroboscope effect value SVM | 0.4 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Power factor | 0.9 |
Downloads
Description

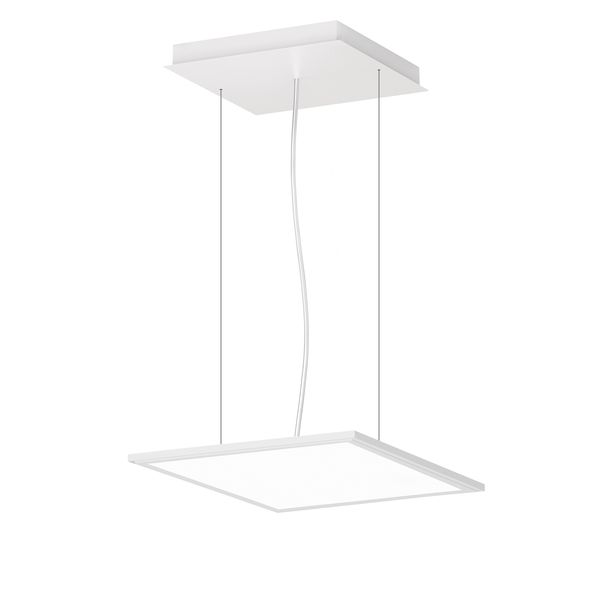

Vierkante led pendelarmatuur voor binnenshuis, bestaande uit: Behuizing van geëxtrudeerd gelakt aluminium. LED Sidelight-Technology, lichtgeleidende kunststof optiek voor homogene lichtverspreiding. Lichtverdeling directe. RA-waarde > 80. Kleurtolerantie volgens MacAdam = 3 SDCM. Ook leverbaar in dim push button. Incl. ophanging met stalen kabel (1,5 mt), transparante voedingskabel en rozet. Inclusief driver. DALI regelbaar.
