FLOODLIGHT 200 W 4000 K SYM 100 BK
In stock: No
Vendor stock: No
Minimal order quantity: 1
Discontinued
Price (excl. VAT):
284,48 €
Split box: 10,00 €
EAN: 4058075423763
MPN: 4058075423763
Box: 1
Pallet: 60
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | FLOODLIGHT 200 W 4000 K SYM 100 BK |
| Brand | LEDVANCE |
| Categories |
Wall mounting lamps
|
| Country of origin | CN |
| Harmonized System Code | 9405 4210 00 |
| Width | 354 mm |
| Colour rendering index CRI | 80-89 |
| Length | 1000 mm |
| Height/depth | 62 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 100-277 V |
| Degree of protection (IP) | IP65 |

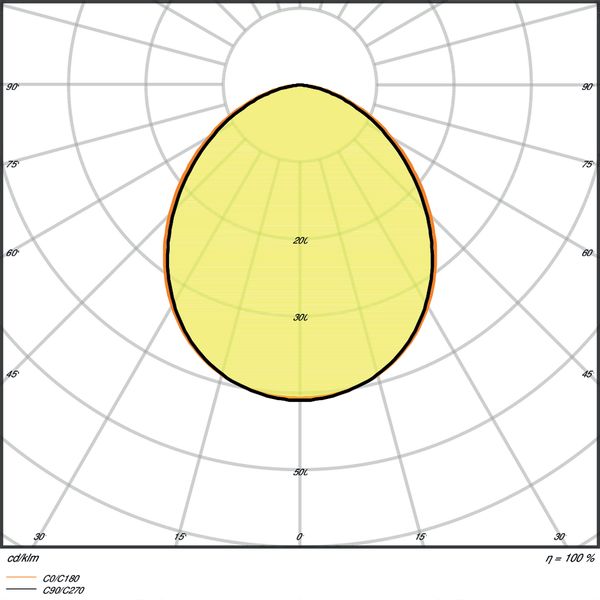

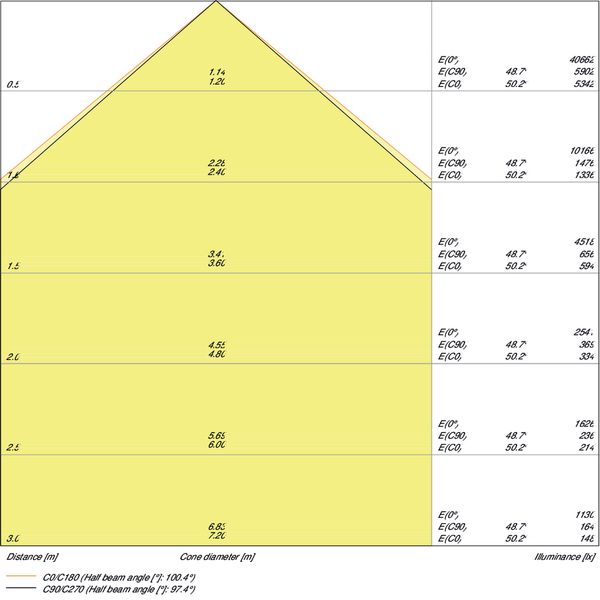

| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 200 W |
| Rated luminous flux according to IEC 62722-2-1 | 25000 lm |
| Luminaire efficacy | 125 lm/W |
Packing details
| Packing level 1 | 4058075423763, 4058075423763 |
| Packing level 2 | 4058075423763 |
Other Technical data
| Protection class | I |
| Reflector | Matt |
| Lamp holder | None |
| Connection type | Push-in clamp |
| Colour housing | Black |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Type of control gear | Electronic ballast |
| Suitable for wall mounting | Yes |
| Energy efficiency class | A++ |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Glass opal |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 0 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Surface brushed | No |
| Colour of light | White |
| Adjustability | Swivelling |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | Yes |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 25000 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 70000 h |
| Rated life time L80/B10 at 25 °C | 55000 h |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Total harmonic distortion | 20 |
| Photobiological safety according to EN 62471 | RG1 |
| Rated ambient temperature according to IEC62722-2-1 | -30-50 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| LED nominal current at constant current | 1000 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Reflector |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | Positions |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | No |
| Power factor | 0.9 |
Downloads
Product picture
Others
Product data sheet
Instructions for use
Declaration DOC CE (Declaration of conformity CE)
Declaration EPD (Environmental Product Declaration)
Description
An LED driver component designed for integration into lighting systems. It provides regulated electrical power to compatible LEDs, ensuring consistent illumination performance while minimizing energy loss. Critical for applications requiring precise current control.
### Electrical Specifications
Input voltage range: 220–240 V AC, 50/60 Hz. Supports output currents tailored for specific LED configurations within defined tolerances. Power factor efficiency enhanced by built-in circuitry — meets EU regulations.
### Installation and Safety Features
Compact design suitable for confined spaces in industrial or commercial systems. Equipped with overload protection, short-circuit safety mechanisms, and thermal cut-off functionality to prevent damage under stress conditions.
### Bullet Notes
- Type: Constant Current LED Driver — average output power delivery standard applied.
- Operating temperature range: -20°C to +45°C — unsuitable for high-temperature environments beyond stated limits.
- Maximum load specification details required per individual setup design parameters before installation.
- Not meant for use with dimmable circuits unless specifically noted in accompanying datasheet verification documents.
- IP rating unavailable on label; external housing conditions must be assessed during application planning phase when moisture present is a concern factor inspection task led necessary confirm regulatory compliance earlier times clarify test round clarify section usage trajectory draft ledger future graph added eco classification location circuit-final mark
