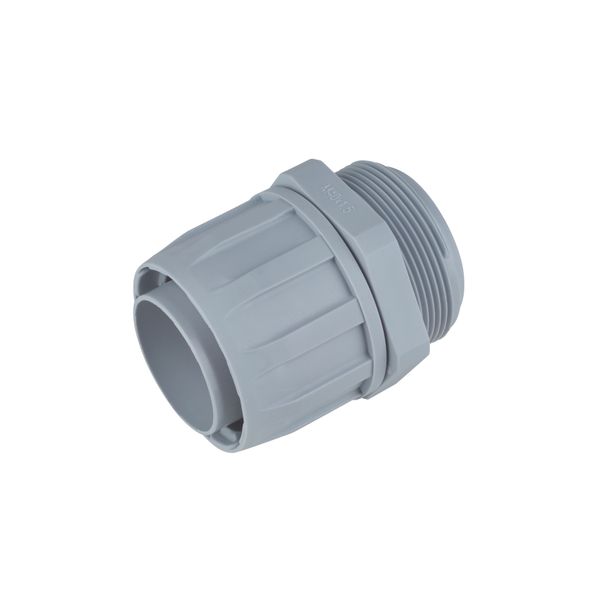

FKV-SW-K 11M20 grijs Kunststof wartel
Order only
Price (excl. VAT):
Price by request
EAN: 4013960381108
MPN: 28162011
Package: 1
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | FKV-SW-K 11M20 grijs Kunststof wartel |
| Brand | FRÄNKISCHE |
| Categories |
Cable Hoses
|
| Harmonized System Code | 3917 4000 00 |
| Model | Straight |
| Type of connection | Thread |
| Construction type | External thread |
| Revolving thread | Yes |
| Nominal diameter | 11 mm |
| Nominal size in inch | Other |
| Degree of protection (IP) | IP54 |
| Thread connection size | M20 x 1.5 |
Packing details
| Packing level 1 | 4013960381108 |
Other Technical data
| Colour | Grey |
| Thread length | 9 mm |
| Total length | 47.5 mm |
| Operating temperature | -25-105 °C |
| Lowest inner diameter hose | 11.1 mm |
| Total height | 47.5 mm |
| Approved in combination with protective conduit UR | No |
| One-piece | Yes |
| Max. outer diameter hose | 26.4 mm |
| With integrated holder | No |
| Material screw gland | Polypropylene (PP) |
| Approved in combination with protective conduit according to DIN EN 61386-23 | No |
| Material sealing | No sealing |
Downloads
Declaration DOC CE (Declaration of conformity CE)
Declaration RoHS
Product data sheet
Construction Products Regulation
Description
FKV-K M kunststof wartel van PP met draaibare metrische schroefdraad, recht, beschermklasse IP54. Geschikt voor de kunststof spiraalslang met verenstalen spiraaldraad FFKSS-SW. Wordt toegepast in de machinebouw en installatietechniek.
