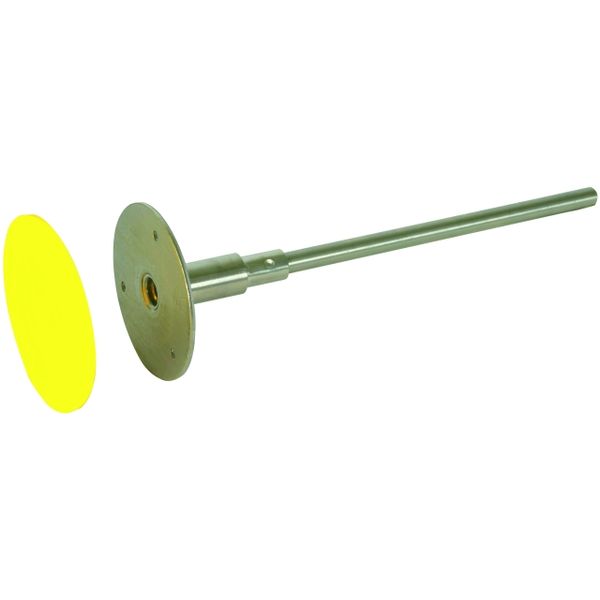

Fixed earthing terminal type M M10/M12 StSt (V4A) with compressed axis

Order only

Price (excl. VAT):

22,50 €

This price is valid until 24.12.25

EAN: 4013364105164

MPN: 478049

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Fixed earthing terminal type M M10/M12 StSt (V4A) with compressed axis
Brand	Dehn
Categories	Earthing Products
Country of origin	DE
Harmonized System Code	8538 9099 00
Length	50 mm
Material	Stainless steel V4A
Connecting shaft	180 mm
Diameter connection plate	80 mm
Material connection lug	Stainless steel V2A

Packing details

Packing level 1

4013364105164, 4013364105164

Downloads

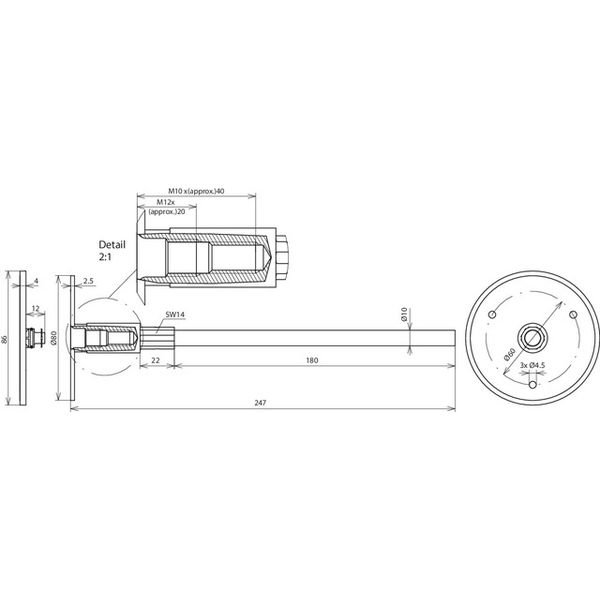

Product data sheet Dimensioned drawing

Description

Fixed earthing terminal according to EN 62561-1, as a corrosion-free connection of the down conductor, e.g. to the building reinforcement or the earth-termination system, for protective equipotential bonding and / or functional equipotential bonding for installation in the formwork. Type M with press-fitted connecting shaft (10 mm) and M10 / 12 connection thread.
