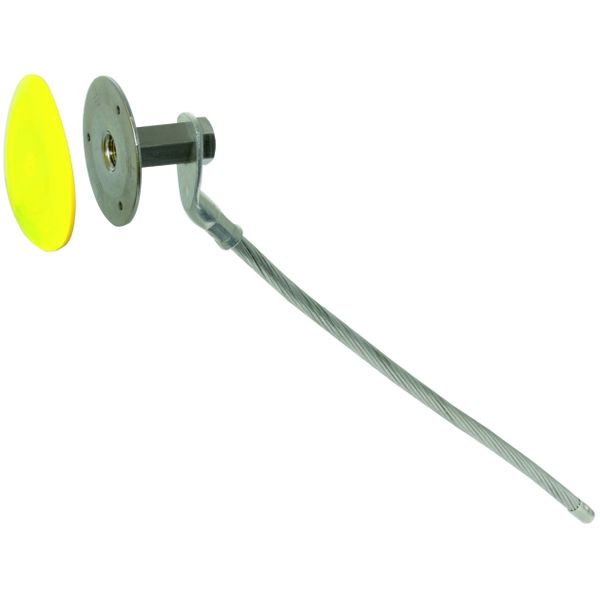

Fixed earthing terminal M16 StSt(V4A) w. connect. cable 70mm² L 400mm

Order only

Price (excl. VAT):

70,38 €

This price is valid until 28.02.26

EAN: 4013364125995

MPN: 478027

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Fixed earthing terminal M16 StSt(V4A) w. connect. cable 70mm² L 400mm
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Length	56 mm
Material	Stainless steel V4A
Connecting shaft	400 mm
Diameter connection plate	80 mm
Material connection lug	Other

Packing details

Packing level 1

4013364125995, 4013364125995

Downloads

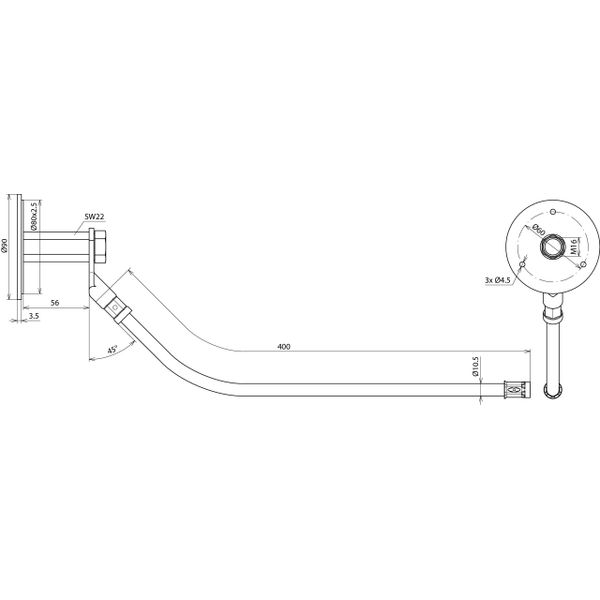

Product data sheet Dimensioned drawing

Description

Fixed earthing terminal with M16 connection thread for higher current loads (50 Hz), e.g. for connecting the ring equipotential bonding system with the earth-termination systems of power installations with a nominal AC voltage over 1 kV (transformer earthing). Type with Cu/galSn connecting cable for formwork installation and tested according to EN 62561-1.
