Five-pole earthing and short-circuiting cable 25mm² w. crimped cable l image 1
Dehn

Five-pole earthing and short-circuiting cable 25mm² w. crimped cable l

Order only
Price (excl. VAT):
777,58 €
This price is valid until 31.12.25
EAN: 4013364164161
MPN: VZKQZB5
Package: 1
Estimate delivery time at our warehouse (approx.): 2 weeks

Technical Information

Item condition New
Manufacture name Five-pole earthing and short-circuiting cable 25mm² w. crimped cable l
Brand Dehn
Categories Electrical Safety Equipment
Country of origin DE
Harmonized System Code 8535 9000 00
Model Cable
Number of poles 5
Max. short circuit current 7 kA
Wire cross section, phase-side 25 mm²
Wire cross section, earth-side 25 mm²

Packing details

Packing level 1 4013364164161, 4013364164161

Other Technical data

Material Copper
Length phaseline a 600 mm
Length phaseline b 600 mm
Length phaseline c 600 mm
Length earth line 1800 mm
Connecting part, phase-side None
Connecting part, earth-side None
Fully insulated No

Downloads

Product data sheet Product picture

Description

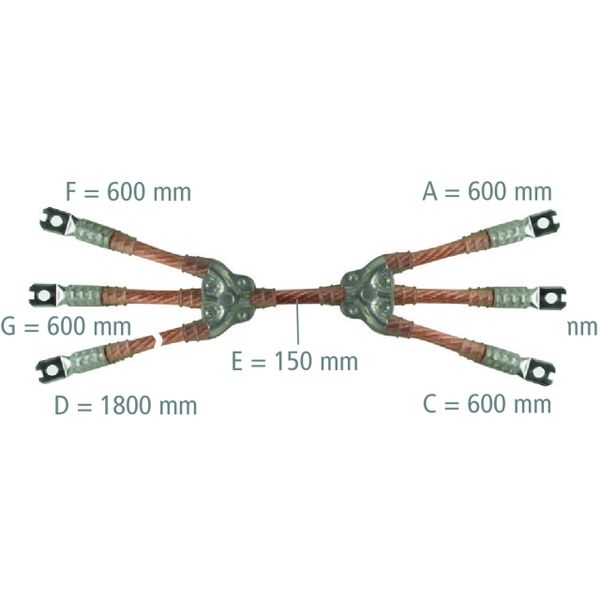

Five-pole earthing and short-circuiting cables with unequipped phase and earth cable ends, for use with suitable clamps, in accordance with EN/IEC 61230 (DIN VDE 0683-100). Cable cross-section: 25 mm2, max. short-circuit current: 7.0 kA / 0.5 s, cable length A,B,C,F,G = 600 mm, E = 150 mm and D = 1800 mm, variant No.: VZKQZB5. Earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator at www.dehn.de/en/euk.
