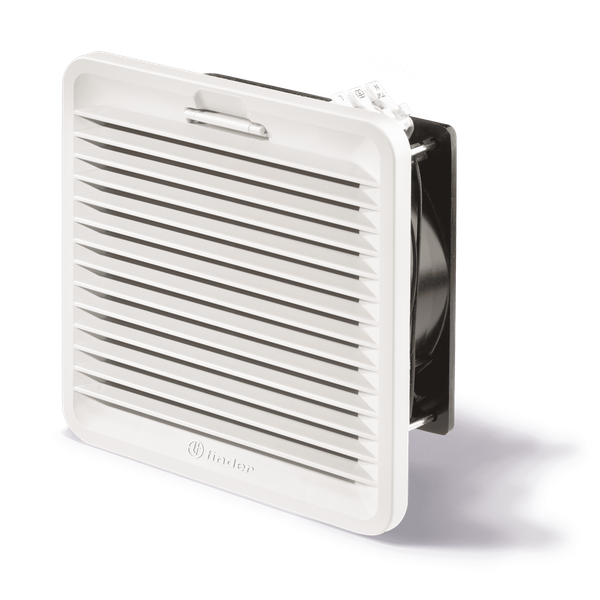

Filter Fan for electrical cabinet 24 m³/h 24VDC/size 1 (7F.20.9.024.1020)
In vendor's stock
Price (excl. VAT):
40,72 €
per pcs
EAN: 8012823423777
MPN: 7F2090241020
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Filter Fan for electrical cabinet 24 m³/h 24VDC/size 1 (7F.20.9.024.1020) |
| Brand | FINDER |
| Categories |
Cabinet Cooling and Heating
|
| Country of origin* | IT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8414 6000 00 |
| Degree of protection (IP) | IP54 |
| Volume flow, freeblowing | 24 m³/h |
| Operating voltage at DC | 24 V |
Packing details
| Packing level 1 | 8012823423777 |
Other Technical data
| Mounting method | Snap mounting |
| Colour | White |
| Width | 120 mm |
| Height | 120 mm |
| Depth | 50 mm |
| RAL-number | 7035 |
| Voltage type | DC |
| Suitable for 19 inch rack mounting | No |
| Number of fans | 1 |
| EMC-version | No |
| With protective cover | No |
| With filter | Yes |
| Rated power | 3.6 W |
| Roof ventilator | No |
| Built as slide-in ventilator | Yes |
| Air circulator | Yes |
| Suitable for wall built-in | Yes |
| Noise emission | 37.5 dB(A) |
| Degree of protection (NEMA) | 12 |
Downloads
Description
Filter fan Rated power: 3.6 W. Mounting method: Snap mounting Colour: White Voltage type: DC Operating voltage at DC: 24 V. RAL-number: 7035 Suitable for 19 inch rack mounting: no Number of fans: 1 EMC-version: no With protective cover: no With filter: yes Roof ventilator: no Built as slide-in ventilator: yes Volume flow, freeblowing: 24 m³/h. Air circulator: yes Suitable for wall built-in: yes Noise emission: 37.5 dB(A). Degree of protection (NEMA): 12 Protection category: IP54
