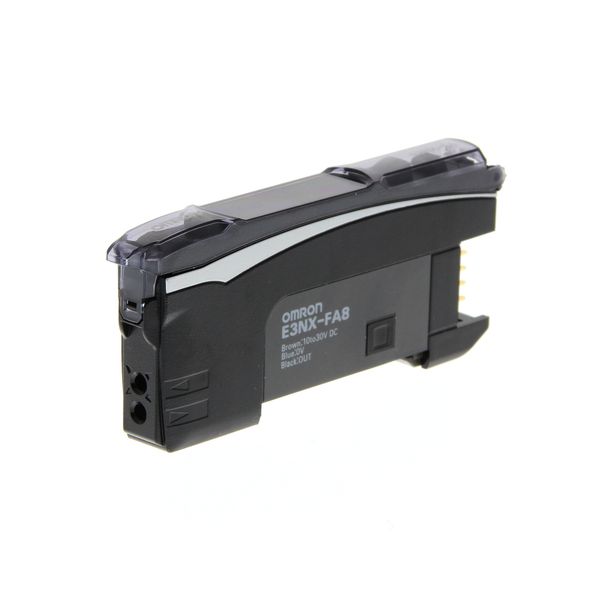

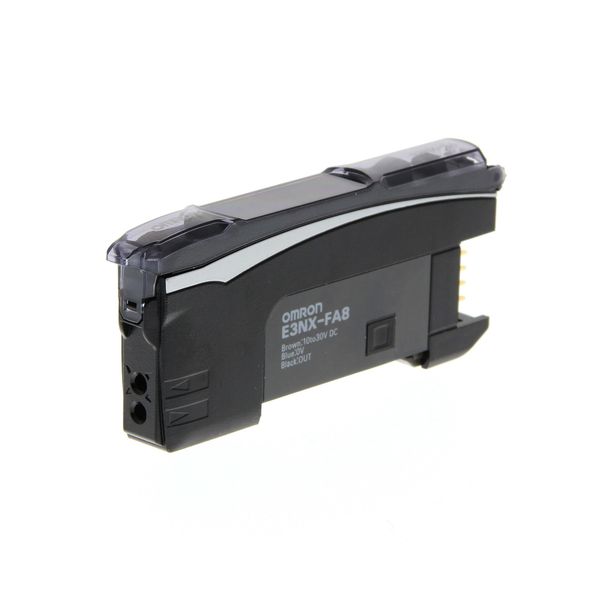

Fiber amplifier, infrared LED, twin digital display, smart tuning, PNP E3NX7042E
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
159,32 €
EAN: 4549734190428
MPN: E3NX-FAH8
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | Fiber amplifier, infrared LED, twin digital display, smart tuning, PNP E3NX7042E |
| Brand | Omron |
| Categories |
Color, Contrast & Distance Sensors
|
| Country of origin | NL |
| Harmonized System Code | 8536 5019 00 |
| Number of semiconductor outputs with signalling function | 0 |
| Number of contact energized outputs with signalling function | 1 |
| Type of electric connection | Cable with connector |
| Type of switching output | PNP |
| Type of switch function | Programmable/configurable |
| With blanking function | No |
| Analogue output 0 V ... 10 V | No |
| Analogue output 0 mA ... 20 mA | No |
| Analogue output -10 V ... +10 V | No |
| Analogue output 4 mA ... 20 mA | No |
Packing details
| Packing level 1 | 4549734190428, 4549734190428 |
Other Technical data
| Voltage type | DC |
| Indication | Digital |
| Max. output current | 100 mA |
| Housing material | Plastic |
| Ambient temperature | -25-55 °C |
| With time function | Yes |
| Switching frequency | 16000 Hz |
| Rated control supply voltage at DC | 10-30 V |
| Operation agent-safety class | Safety class 3 |
| Setting procedure | Other |
| Construction type housing | Cuboid |
| Laser protection class | Other |
| No-load current | 0.1 mA |
| Type of light | Infrared light |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Material fibre optics core | Plastic |
| Degree of protection (IP) | IP50 |
| AWG-number | 24 |
| Width amplifier | 10 mm |
| Height amplifier | 33.5 mm |
| Length amplifier | 75.3 mm |
Downloads
Description
Fiber amplifier, infrared LED, twin digital display, smart tuning, PNP, single output, system connector
Accessories
In stock: No
Omron
Mounting bracket for 10 mm wide sensor amplifiers, surface mount with E3X 1088F
7,06 €
EAN: 4536854537578
MPN: E39-L143
Package: 1
