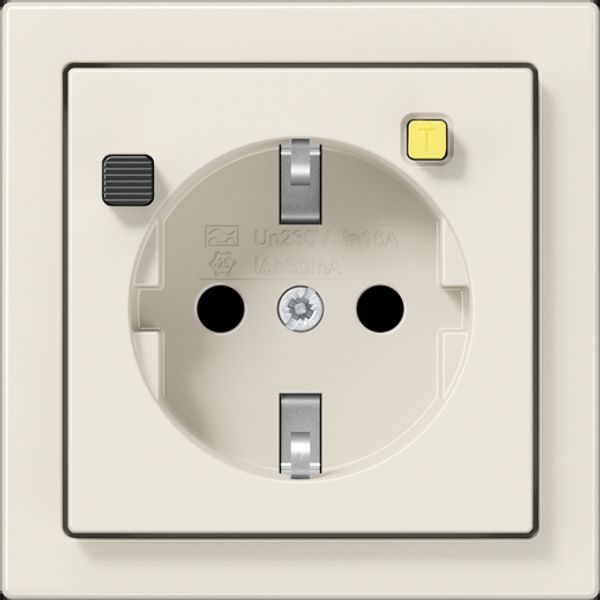

FI socket (RCD 30 mA) LS5520.30
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
214,06 €
EAN: 4011377164437
MPN: LS5520.30
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | FI socket (RCD 30 mA) LS5520.30 |
| Brand | Jung |
| Categories |
Sockets
|
| Country of origin | DE |
| Harmonized System Code | 8536 6990 00 |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Model | Protective contact (type F) |
| Halogen free | Yes |
| Number of units | 1 |
| Lockable | No |
| With hinged lid | No |
| Connection type | Push-in clamp |
| Surface protection | Other |
| With signal lamp | No |
| Number of phases | 1 |
| With enhanced contact protection | Yes |
| With on/off switch | Yes |
| Protective contact | Yes |
| Label space/information surface | No |
| Eject-mechanism | No |
| Material quality | Thermoplastic |
| Rotated central insert | No |
| Over voltage protection | No |
| Fault current protection | Yes |
| Special power supply | No special power supply |
| Insulated mounting | No |
| Material | Plastic |
| Rated fault current | 30 mA |
| Type of fastening | Mounting with claw and screw |
| RAL-number (similar) | 1013 |
| Transparent | No |
| Surface finishing | Glossy |
| With miniature fuse | No |
| With loop through function | No |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 70 mm |
| Device height | 70 mm |
| Device depth | 0 mm |
| Number of socket outlets switchable | 1 |
| With function lighting | No |
| With orientation lighting | No |
| With built-in USB power supply | No |
| Number of modules (module system) | 0 |
| Number of active pins (round) | 2 |
| Number of active pins (flat) | 0 |
| Protective earth pin round | Yes |
| Min. depth of built-in installation box | 0 mm |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 4011377164437 |
Downloads
Description
FI socket LS5520.30 serves as a protective contact outlet with integrated residual current device (30 mA) for fault current protection in electrical systems.Suitable for flush-mounted installation, it enhances safety by interrupting the circuit during hazardous conditions. Nominal voltage 250 V.Nominal current rated 16 A.Fault current protection present, RCD triggers at 30 mA.Device dimensions:70 mm width x 70 mm height x depth undefined (installation box min depth also undefined).Material thermoplastic plastic, halogen-free with glossy surface finishing and RAL similar to 1013 color range.Connection method via push-in clamp type;enhanced contact protection applied but no insulated mounting or eject mechanism detected.Protective earth pin round confirmed. Designed for IP20 degree of protection without heavy-condition rating per VDE standards—standard single-phase connection, not lockable or switchable orientation insert configurations noted;operates with on/off switching only;includes claw and screw fastening system for mounting method specs verified without transparent lids/lighting/orientation indicators integrated base features absent USB power circuits/interfaces/controllers excess omitted notes conclude basic operational notes/checks complete code matches web source accessory status unpaired function/system neutral returns control expect stability service clearance remarks logged report slots file clean finish over query reinforce safe loop(EXIT)? >>
